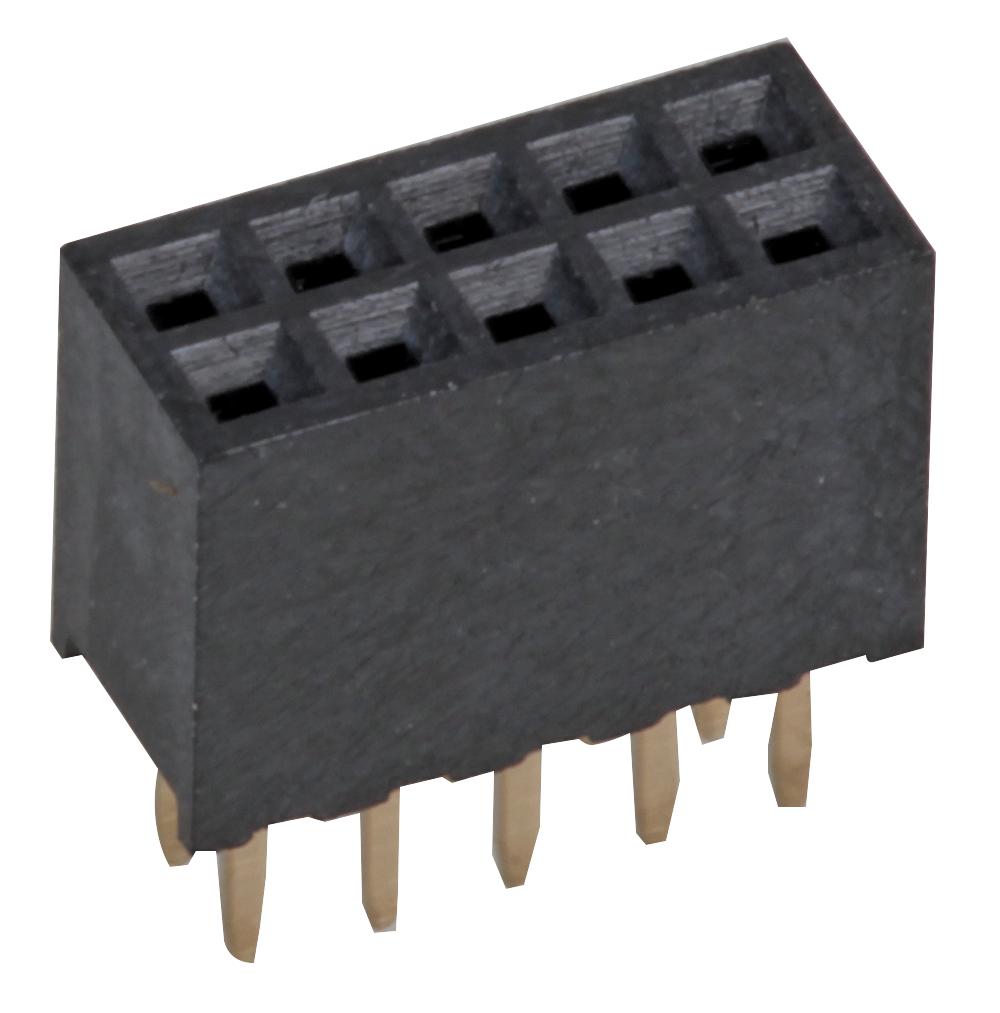

2214BR-10g Socket, Pcb, 2 Row, R/A, 10WAY multicomp Pro

MULTICOMP PRO - 2214BR-10G - PCB Receptacle, Board-to-Board, 2.54 mm, 2 Rows, 10 Contacts, Through Hole Mount Right Angle

• Pitch Spacing: 2.54mm
• No. of Contacts: 10Contacts
• Gender: Receptacle
• Product Range: 2214BR Series
• Contact Termination Type: Through Hole
• No. of Rows: 2Rows
• Contact Plating: Gold Plated Contacts
• Contact Material: Phosphor Bronze
• SVHC: No SVHC (15-Jan-2019)
• Contact Resistance: 20mohm
• Contact Termination: Solder
• Current Rating: 3A
• Flammability Rating: UL94V-0
• Insulation Resistance: 1000Mohm
• Lead Spacing: 2.54mm
• Operating Temperature Max: 105°C
• Operating Temperature Min: -40°C
• Row Pitch: 2.54mm
• Termination Method: Solder
• Voltage Rating VAC: 250V
• Withstand Voltage: 600V
