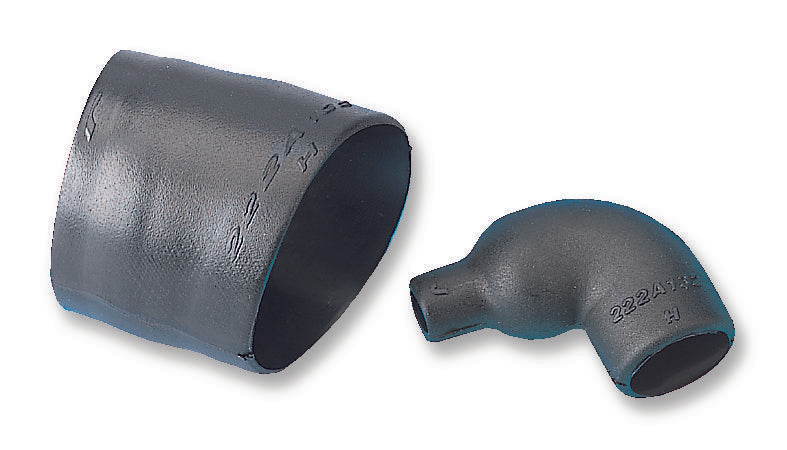

RAYCHEM - TE CONNECTIVITY - 222A142-25-0 - Heat Shrink Boot, Moulded, Right Angle, 1.279 ", 32.5 mm, Black, 1.44 ", 36.6 mm
- Boot Configuration: Right Angle
- I.D. Supplied - Imperial: 1.279"
- I.D. Supplied - Metric: 32.5mm
- Shrink Tubing / Boot Colour: Black
- Total Length - Imperial: 1.44"
- Total Length - Metric: 36.6mm
- I.D. Recovered Max - Imperial: 0.271"
- I.D. Recovered Max - Metric: 6.9mm
- Shrink Tubing / Boot Material: Elastomer
- Shrink Ratio: 2.3
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Accessory Type: Heat Shrink Boot
- Cable Diameter Max: 32.5mm
- Cable Diameter Min: 6.9mm
- Fully Shrunk Diameter: 17.3mm
- Shrink Boot Type: Right-Angled
- Shrink Temperature: 135°C
- Wall Thickness Recovered: 1.8mm
