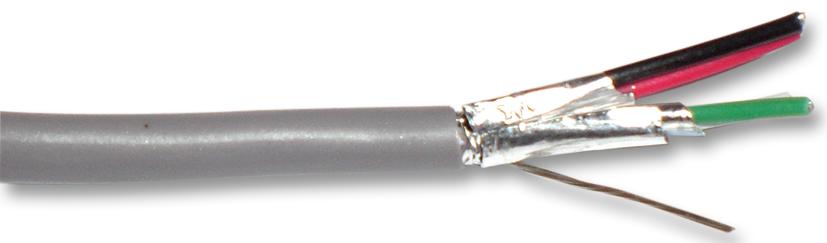

ALPHA WIRE - 2463L SL005 - Multipair Cable, Control, Screened, 4 Pair, 22 AWG, 0.35 mm², 100 ft, 30.5 m
- Cable Shielding: Screened
- No. of Pairs: 4 Pair
- Wire Gauge: 22AWG
- Conductor Area CSA: 0.35mm²
- Reel Length (Imperial): 100ft
- Reel Length (Metric): 30.5m
- Jacket Colour: Slate
- No. of Max Strands x Strand Size: 7 x 0.255mm
- Voltage Rating: 300V
- Jacket Material: LSZH
- Conductor Material: Tinned Copper
- External Diameter: 7.2mm
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Cable Type: Foil Shield
- Conductor Make-up: 7 / 30
- No. of Cores: 8Core
- Operating Temperature Max: 75°C
- Operating Temperature Min: -20°C
- Outer Diameter: 7.2mm
- Wire Size: 22AWG
