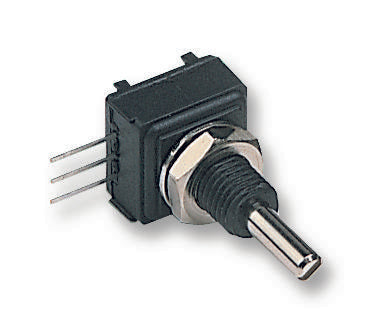

249BBHS0XB25102KA Potentiometer, 1K Vishay

VISHAYUGS :249BBHS0XB25102KA Code de commande:9609210

Prix:
Prix ​​promotionnel€23,73

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (100 unité)

Documents et téléchargements

description

VISHAY - 249BBHS0XB25102KA - Rotary Potentiometer, Cermet, 1 kohm, 1 Turns, Linear, 1 W, ± 10%, 249

  • Track Resistance: 1kohm
  • No. of Turns: 1Turns
  • Track Taper: Linear
  • Power Rating: 1W
  • Resistance Tolerance: ± 10%
  • Product Range: 249 Series
  • Potentiometer Mounting: Through Hole
  • Shaft Diameter: 3.17mm
  • No. of Gangs: 1
  • Adjustment Type: Screwdriver Slot
  • Shaft Length: 19.05mm
  • Electrical Angular Rotation Tolerance +: 5°
  • Electrical Angular Rotation Tolerance -: 5°
  • External Depth: 7.6mm
  • External Length / Height: 12.7mm
  • External Width: 12.7mm
  • Full Power Rating Temperature: 70°C
  • Mechanical Angular Rotation Tolerance +: 5°
  • Mechanical Angular Rotation Tolerance -: 5°
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +125°C
  • Proof Voltage: 750VAC
  • Resistance: 1kohm
  • Resistor Element Material: Cermet
  • Rotation Electrical Angle: 265°
  • Rotation Mechanical Angle: 295°
  • Temperature Coeff. +: 100ppm/°C
  • Temperature Coeff. -: 100ppm/°C
  • Temperature Coefficient: ± 100ppm/°C
  • Termination Type: Radial Leaded
  • Thread Size: 1/4" 32 UNEF
