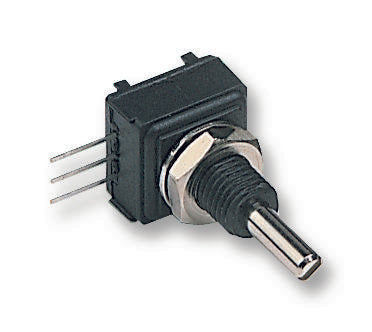

VISHAY - 249BBHS0XB25503KA - Rotary Potentiometer, Cermet, 50 kohm, 1 Turns, Linear, 1 W, ± 10%, 249
- Track Resistance: 50kohm
- No. of Turns: 1Turns
- Track Taper: Linear
- Power Rating: 1W
- Resistance Tolerance: ± 10%
- Product Range: 249 Series
- Potentiometer Mounting: Through Hole
- Shaft Diameter: 3.17mm
- No. of Gangs: 1
- Adjustment Type: Screwdriver Slot
- Shaft Length: 19.05mm
- Bush Diameter: 6.35mm
- Electrical Angular Rotation Tolerance +: 5°
- Electrical Angular Rotation Tolerance -: 5°
- End Resistance: 2ohm
- External Depth: 7.6mm
- External Length / Height: 12.7mm
- External Width: 12.7mm
- Full Power Rating Temperature: 70°C
- Insulation Resistance: 1000Mohm
- Mechanical Angular Rotation Tolerance +: 5°
- Mechanical Angular Rotation Tolerance -: 5°
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- Proof Voltage: 750VAC
- Resistance: 50kohm
- Resistor Element Material: Cermet
- Rotation Electrical Angle: 265°
- Rotation Mechanical Angle: 295°
- Temperature Coeff. +: 100ppm/°C
- Temperature Coeff. -: 100ppm/°C
- Termination Type: Radial Leaded
