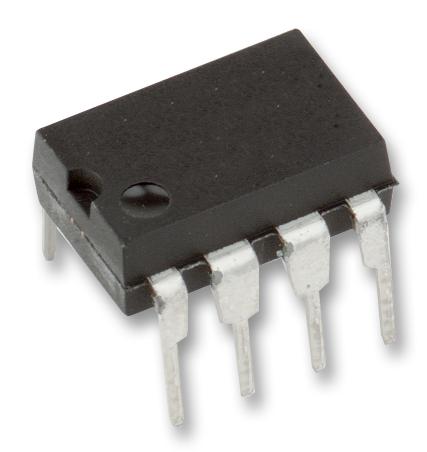

25C040/P Serial EEPROM, 4Kbit, 3MHz, Dip-8 Microchip

MICROCHIPUGS :25C040/P Code de commande:1607554

Prix:
Prix ​​promotionnel€1,40

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (503 unité)

Documents et téléchargements

description

MICROCHIP - 25C040/P - EEPROM, 4 Kbit, 512 x 8bit, Serial SPI, 3 MHz, DIP, 8 Pins

  • Memory Size: 4Kbit
  • EEPROM Memory Configuration: 512 x 8bit
  • Memory Interface Type: Serial SPI
  • Clock Frequency: 3MHz
  • Memory Case Style: DIP
  • No. of Pins: 8Pins
  • Supply Voltage Min: 4.5V
  • Supply Voltage Max: 5.5V
  • Operating Temperature Min: 0°C
  • Operating Temperature Max: 70°C
  • Product Range: 4Kbit SPI Serial EEPROM
  • MSL: -
  • SVHC: No SVHC (27-Jun-2018)
  • Clock Frequency Max: 3MHz
  • IC Generic Number: 25C040
  • IC Interface Type: Serial SPI
  • Memory Density: 4Kbit
  • Memory Type: EEPROM
  • Memory Voltage Vcc: 5V
  • Operating Temperature Range: 0°C to +70°C
  • Supply Voltage Range: 4.5V to 5.5V
  • Termination Type: Through Hole
