26.01.8.230.0000 Relay, SPST-NO, 250VAC, 10A Finder

FINDERUGS :26.01.8.230.0000 Code de commande:1455193

Prix:
Prix ​​promotionnel€18,84

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (226 unité)

Documents et téléchargements

description

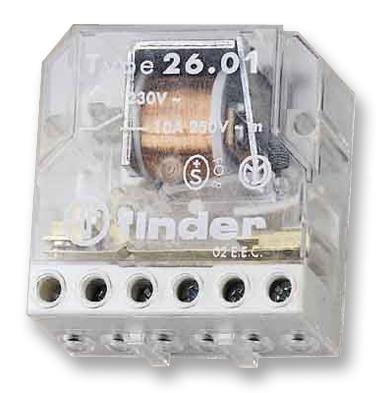

FINDER - 26.01.8.230.0000 - General Purpose Relay, 26 Series, Power, SPST-NO, 230 VAC, 10 A

  • Contact Configuration: SPST-NO
  • Coil Voltage: 230VAC
  • Contact Current: 10A
  • Product Range: 26 Series
  • Relay Mounting: Panel
  • Coil Type: -
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Screw
  • Contact Voltage VDC: -
  • Contact Material: Silver Nickel
  • Coil Resistance: 6.25kohm
  • SVHC: No SVHC (15-Jan-2019)
  • Coil Current: 20mA
  • Coil Voltage VAC Nom: 230V
  • Contact Current Max: 20A
  • Contact Voltage AC Max: 400V
  • Contact Voltage AC Nom: 250V
  • Current Rating: 10A
  • Dielectric Voltage Coil to Contact: 3500VAC
  • Dielectric Voltage Contact to Contact: 2000VAC
  • External Depth: 22mm
  • External Height: 46.6mm
  • External Width: 45mm
  • IP / NEMA Rating: IP20
  • Nom Operating Power: 4.5VA
  • Operating Temperature Max: 40°C
  • Operating Temperature Min: -40°C
  • Relay Type: Power
