27ESB473MMF50NF Potentiometer, D/Gang Log 47K CITEC - Te Connectivity

CITEC - TE CONNECTIVITYUGS :27ESB473MMF50NF Code de commande:1173988

Prix:
Prix ​​promotionnel€11,28

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (173 unité)

Documents et téléchargements

description

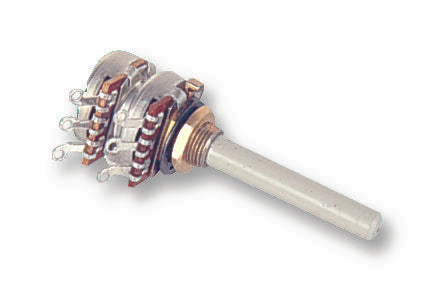

CITEC - TE CONNECTIVITY - 27ESB473MMF50NF - Rotary Potentiometer, Spindle Operated, 47 kohm, 1 Turns, Logarithmic, 200 mW, ± 20%, 27ESB

  • Track Resistance: 47kohm
  • No. of Turns: 1Turns
  • Track Taper: Logarithmic
  • Power Rating: 200mW
  • Resistance Tolerance: ± 20%
  • Product Range: 27ESB Series
  • Potentiometer Mounting: Panel
  • Shaft Diameter: 6.35mm
  • No. of Gangs: 2
  • Adjustment Type: Screwdriver Slot
  • Shaft Length: 50mm
  • SVHC: No SVHC (15-Jan-2018)
  • Body Diameter: 20.4mm
  • External Length / Height: 21mm
  • Full Power Rating Temperature: 40°C
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -25°C
  • Operating Temperature Range: -25°C to +70°C
  • Resistance: 47kohm
  • Resistor Element Material: Metal Foil
  • Rotation Electrical Angle: 267°
  • Rotation Mechanical Angle: 300°
  • Termination Type: Solder
  • Thread Size: 7.4 M9.5
  • Voltage Rating: 500V
  • Voltage Rating V DC: 500V
