280-837 Terminal Block, DIN Rail, 4Pos, 12AWG Wago

WAGOUGS :280-837 Code de commande:1283402

Prix:
Prix ​​promotionnel€10,11

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (335 unité)

Documents et téléchargements

description

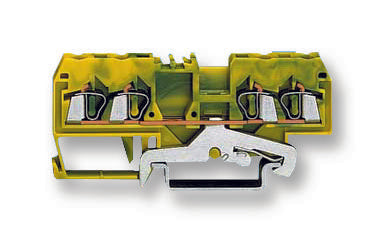

WAGO - 280-837 - DIN Rail Mount Terminal Block, 4 Ways, 28 AWG, 12 AWG, 2.5 mm², Clamp, 20 A

  • No. of Positions: 4Ways
  • Wire Size AWG Min: 28AWG
  • Wire Size AWG Max: 12AWG
  • Conductor Area CSA: 2.5mm²
  • Wire Connection Method: Clamp
  • Rated Current: 20A
  • Rated Voltage: 800V
  • No. of Levels: 1
  • Product Range: 280 Series
  • SVHC: No SVHC (15-Jan-2018)
  • Colour: Green / Yellow
  • Connector Mounting: DIN Rail Mount
  • Connector Type: Terminal Block, DIN Rail
  • Contact Material: Steel
  • External Depth: 28mm
  • External Length / Height: 75mm
  • External Width: 5mm
  • Pitch Spacing: 5mm
  • Wire Area Size Max: 2.5mm²
  • Wire Area Size Min: 0.08mm²
