284514-3 Terminal Block,Header, 3.50 MM, 3WAY Buchanan - Te Connectivity

BUCHANAN - TE CONNECTIVITYUGS :284514-3 Code de commande:2059809

Prix:
Prix ​​promotionnel€1,19

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1077 unité)

Documents et téléchargements

description

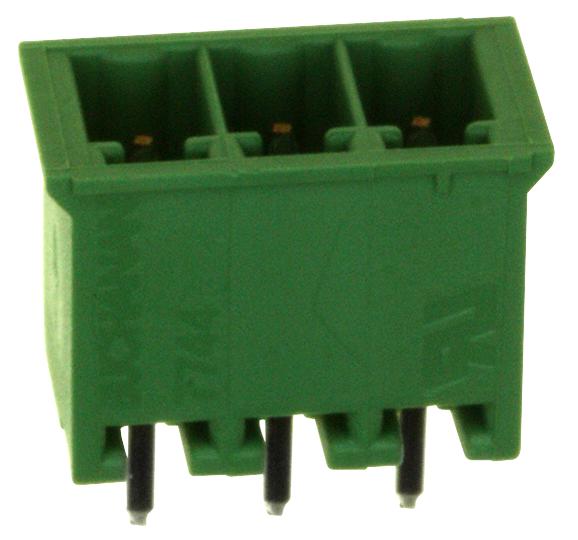

BUCHANAN - TE CONNECTIVITY - 284514-3 - Terminal Block, Header, 3.5 mm, 3 Ways, 11 A, 300 V, Through Hole Vertical

  • Gender: Header
  • Pitch Spacing: 3.5mm
  • No. of Positions: 3Ways
  • Rated Current: 11A
  • Rated Voltage: 300V
  • Block Orientation: Through Hole Vertical
  • Product Range: -
  • SVHC: No SVHC (27-Jun-2018)
  • Connector Mounting: Through Hole Mount
  • Connector Type: Terminal Block, Pluggable
  • Contact Material: Phosphor Bronze
  • Contact Plating: Tin Plated Contacts
  • Contact Termination: Through Hole Vertical
  • Contact Termination Type: Through Hole
  • No. of Contacts: 3Contacts
  • Wire Size AWG Max: 14AWG
  • Wire Size AWG Min: 30AWG
