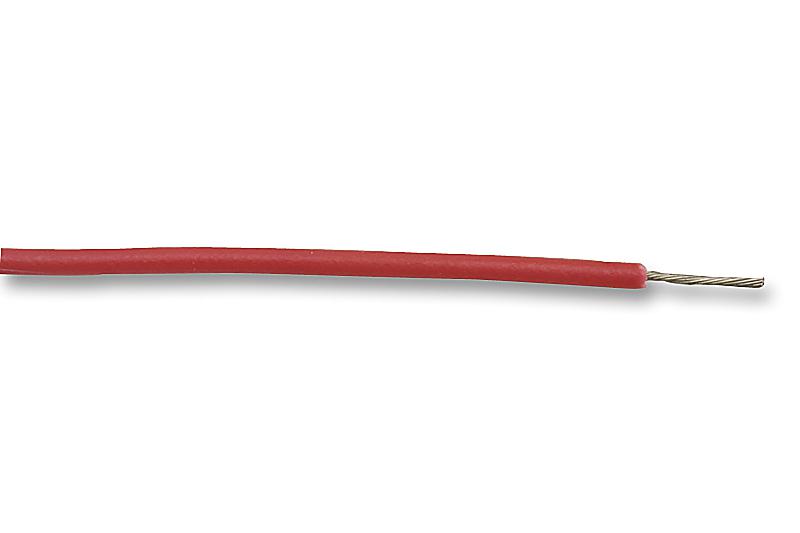

ALPHA WIRE - 2845/7 RD005 - Wire, Stranded, Hook Up, PTFE, Red, 22 AWG, 0.357 mm², 100 ft, 30.5 m
- Jacket Material: PTFE
- Jacket Colour: Red
- Wire Gauge: 22AWG
- Conductor Area CSA: 0.357mm²
- Reel Length (Imperial): 100ft
- Reel Length (Metric): 30.5m
- No. of Max Strands x Strand Size: 7 x 30AWG
- Voltage Rating: 250V
- Conductor Material: Silver Plated Copper
- External Diameter: 1.067mm
- Approval Specification: MIL-DTL-16878/6 (Type ET), UL VW-1
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Conductor Make-up: 7 / 30AWG
- Outer Diameter: 1.07mm
- Wire Size: 22AWG
