2AS1T2A1M2RES Switch, Pcb, SPDT, Vert multicomp Pro

MULTICOMP PROUGS :2AS1T2A1M2RES Code de commande:9473084

Prix:
Prix ​​promotionnel€3,90

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1238 unité)

Documenten en downloads

description

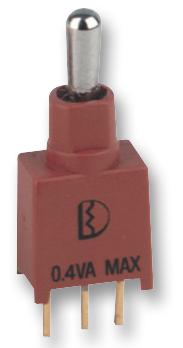

MULTICOMP PRO - 2AS1T2A1M2RES - Toggle Switch, On-On, SPDT, Non Illuminated, 2AS, Through Hole, 100 mA

  • Switch Operation: On-On
  • Contact Configuration: SPDT
  • Illumination: Non Illuminated
  • Product Range: 2AS Series
  • Contact Current Max: 100mA
  • Switch Mounting: Through Hole
  • Contact Voltage AC Nom: 20V
  • Switch Terminals: Solder
  • Contact Voltage DC Nom: 20V
  • SVHC: No SVHC (15-Jan-2018)
  • AC Power: 0.4VA
  • Actuation Type: Bat
  • Bush Diameter: 4.8mm
  • Bush Length: 4.65mm
  • Contact Resistance: 20mohm
  • Contact Voltage AC Max: 20V
  • Contact Voltage DC Max: 20V
  • DC Power: 0.4VA
  • External Depth: 8.13mm
  • External Length / Height: 8.89mm
  • External Width: 5.08mm
  • Height: 8.89mm
  • Insulation Resistance: 1000Mohm
  • Lever Length: 6.1mm
  • No. of Electrical Operations: 50000
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -30°C
  • Tab Blade Thickness: 0.51mm
