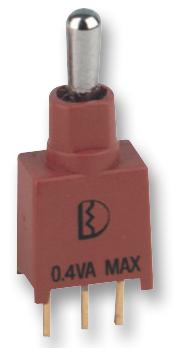

MULTICOMP PRO - 2AS4T2A1M2RE - Toggle Switch, (On)-Off-(On), SPDT, Non Illuminated, 2AS, Through Hole, 100 mA
- Switch Operation: (On)-Off-(On)
- Contact Configuration: SPDT
- Illumination: Non Illuminated
- Product Range: 2AS Series
- Contact Current Max: 100mA
- Switch Mounting: Through Hole
- Contact Voltage AC Nom: 20V
- Switch Terminals: Solder
- Contact Voltage DC Nom: 20V
- SVHC: No SVHC (15-Jan-2018)
- AC Power: 0.4VA
- Actuation Type: Bat
- Bush Diameter: 4.8mm
- Bush Length: 4.65mm
- Contact Resistance: 20mohm
- Contact Voltage AC Max: 20V
- Contact Voltage DC Max: 20V
- DC Power: 0.4VA
- External Depth: 8.13mm
- External Length / Height: 8.89mm
- External Width: 5.08mm
- Height: 8.89mm
- Insulation Resistance: 1000Mohm
- Lever Length: 6.1mm
- No. of Electrical Operations: 50000
- Operating Temperature Max: 85°C
- Operating Temperature Min: -30°C
- Tab Blade Thickness: 0.51mm
