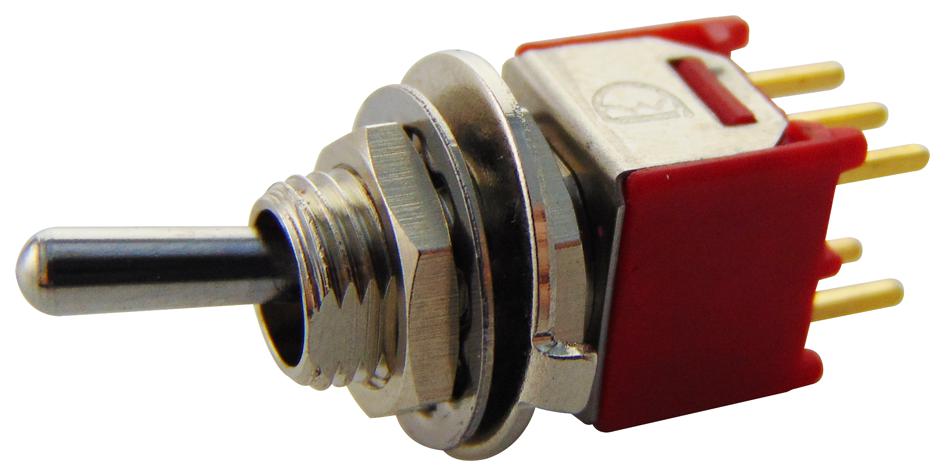

2MD2T1B5M2RE Switch, Toggle, DPDT, On-Mom multicomp Pro

MULTICOMP PRO - 2MD2T1B5M2RE - Toggle Switch, On-(On), DPDT, Non Illuminated, 2M, Panel Mount, 100 mA

• Switch Operation: On-(On)
• Contact Configuration: DPDT
• Illumination: Non Illuminated
• Product Range: 2M Series
• Contact Current Max: 100mA
• Switch Mounting: Panel
• Contact Voltage AC Nom: 20V
• Switch Terminals: Solder
• Contact Voltage DC Nom: 20V
• SVHC: No SVHC (15-Jan-2018)
• AC Power: 0.4VA
• Actuation Type: Bat
• Approval Category: UL Recognised
• Bush Thread Length: 7.87mm
• Contact Resistance: 20mohm
• Contact Voltage AC Max: 20VAC
• Contact Voltage DC Max: 20VDC
• DC Power: 0.4VA
• External Depth: 9.14mm
• External Length / Height: 8.94mm
• External Width: 10.16mm
• Flammability Rating: UL 94V-0
• Insulation Resistance: 1000Mohm
• Lever Length: 9.4mm
• Material: DAP
• No. of Mechanical Operations: 30000
• Operating Temperature Max: 85°C
• Operating Temperature Min: -30°C
• Panel Cutout Diameter: 7.1mm
• Single Flat Panel Cut-out Diameter: 5.72mm
• Termination Method: Through Hole
• Thread Size: ¼ - 40 UNS
