2MS1T2B2M7RE Switch, Toggle, SPDT, On-On multicomp Pro

MULTICOMP PROUGS :2MS1T2B2M7RE Code de commande:1550095

Prix:
Prix ​​promotionnel€3,50

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (4052 unité)

Documents et téléchargements

description

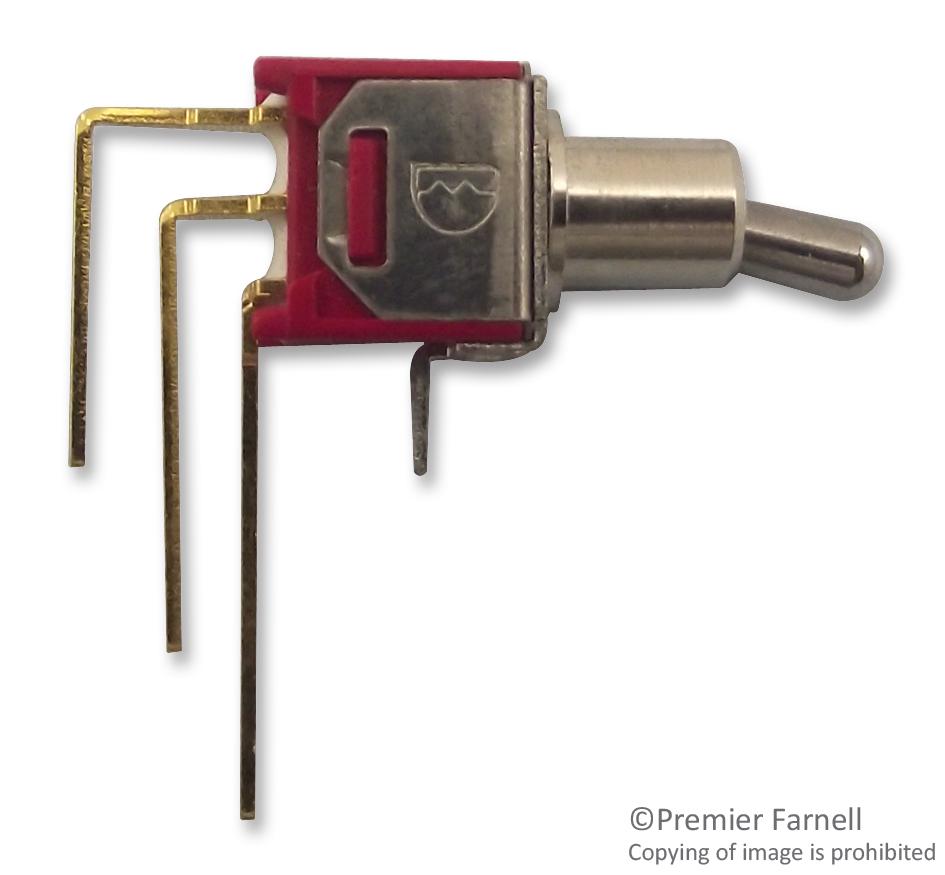

MULTICOMP PRO - 2MS1T2B2M7RE - Toggle Switch, On-On, SPDT, Non Illuminated, 2M, Through Hole, 100 mA

  • Switch Operation: On-On
  • Contact Configuration: SPDT
  • Illumination: Non Illuminated
  • Product Range: 2M Series
  • Contact Current Max: 100mA
  • Switch Mounting: Through Hole
  • Contact Voltage AC Nom: 20V
  • Switch Terminals: Solder
  • Contact Voltage DC Nom: 20V
  • SVHC: No SVHC (15-Jan-2018)
  • AC Power: 0.4VA
  • Actuation Type: Bat
  • Approval Category: UL Recognised
  • Bush Length: 5.59mm
  • Contact Resistance: 20mohm
  • Contact Voltage AC Max: 20VAC
  • Contact Voltage DC Max: 20VDC
  • DC Power: 0.4VA
  • External Depth: 9.09mm
  • External Length / Height: 8.13mm
  • External Width: 5.08mm
  • Flammability Rating: UL 94V-0
  • Insulation Resistance: 1000Mohm
  • Lever Length: 5.33mm
  • Material: DAP
  • No. of Mechanical Operations: 30000
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -30°C
  • Panel Cutout Diameter: 6mm
  • Single Flat Panel Cut-out Diameter: 4.39mm
  • Termination Method: Through Hole
