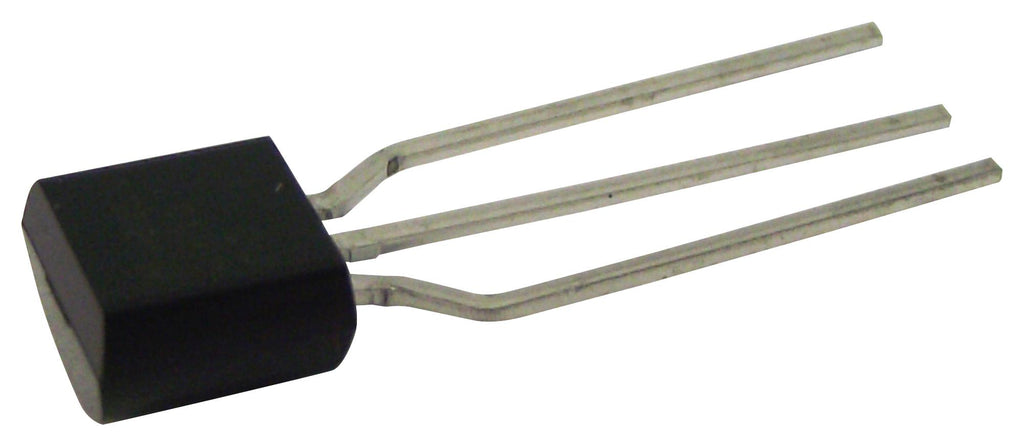

2N3904TA Transistor, NPN, 40V, 200mA, TO-92 ONSEMI

ONSEMIUGS :2N3904TA Code de commande:9846743

Prix:
Prix ​​promotionnel€0,57

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (167013 unité)

Documents et téléchargements

description

ONSEMI - 2N3904TA - Bipolar (BJT) Single Transistor, NPN, 40 V, 200 mA, 625 mW, TO-92, Through Hole

  • Transistor Polarity: NPN
  • Collector Emitter Voltage V(br)ceo: 40V
  • Transition Frequency ft: -
  • Power Dissipation Pd: 625mW
  • DC Collector Current: 200mA
  • DC Current Gain hFE: 100hFE
  • Transistor Case Style: TO-92
  • No. of Pins: 3Pins
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 1 - Unlimited
  • SVHC: No SVHC (27-Jun-2018)
  • Collector Emitter Saturation Voltage Vce(on): 200mV
  • Continuous Collector Current Ic Max: 200mA
  • Current Ic @ Vce Sat: 10mA
  • Current Ic Continuous a Max: 200mA
  • Current Ic Fall Time Measurement: 10mA
  • Current Ic hFE: 10mA
  • Fall Time @ Ic: 250ns
  • Full Power Rating Temperature: 25°C
  • Gain Bandwidth ft Min: 300MHz
  • Gain Bandwidth ft Typ: 300MHz
  • Hfe Min: 100
  • No. of Transistors: 1
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C
  • Pin Configuration: b
  • Power Dissipation Ptot Max: 500mW
  • Voltage Vcbo: 60V
