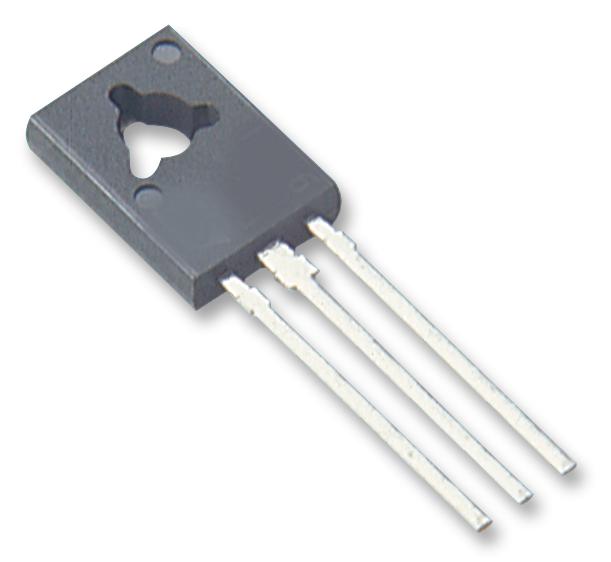

LITTELFUSE - 2N6075AG - Triac, 600 V, 4 A, TO-225, 2.5 V, 30 A, 15 mA
- Peak Repetitive Off-State Voltage, Vdrm: 600V
- On State RMS Current IT(rms): 4A
- Triac Case Style: TO-225
- Gate Trigger Current Max (QI), Igt: 10mA
- Gate Trigger Voltage Max Vgt: 2.5V
- Peak Gate Power: 10W
- Peak Non Rep Surge Current Itsm 50Hz: 30A
- Holding Current Max Ih: 15mA
- No. of Pins: 3Pins
- Operating Temperature Max: 110°C
- Product Range: -
- MSL: -
- SVHC: No SVHC (12-Jan-2017)
- Current Itsm: 30A
- Current Itsm @ 60Hz: 30A
- Current t2+g-: 5mA
- Current t2-g+: 10mA
- Current t2-g-: 5mA
- Gate Trigger Current Igt (Q1) t2+g+: 5mA
- Gate Trigger Current Max, Igt: 5mA
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +110°C
- Repetitive Reverse Voltage Vrrm Max: 600V
- Termination Type: Through Hole
- Thyristor Case: TO-225
- Thyristor Type: Triac
