description

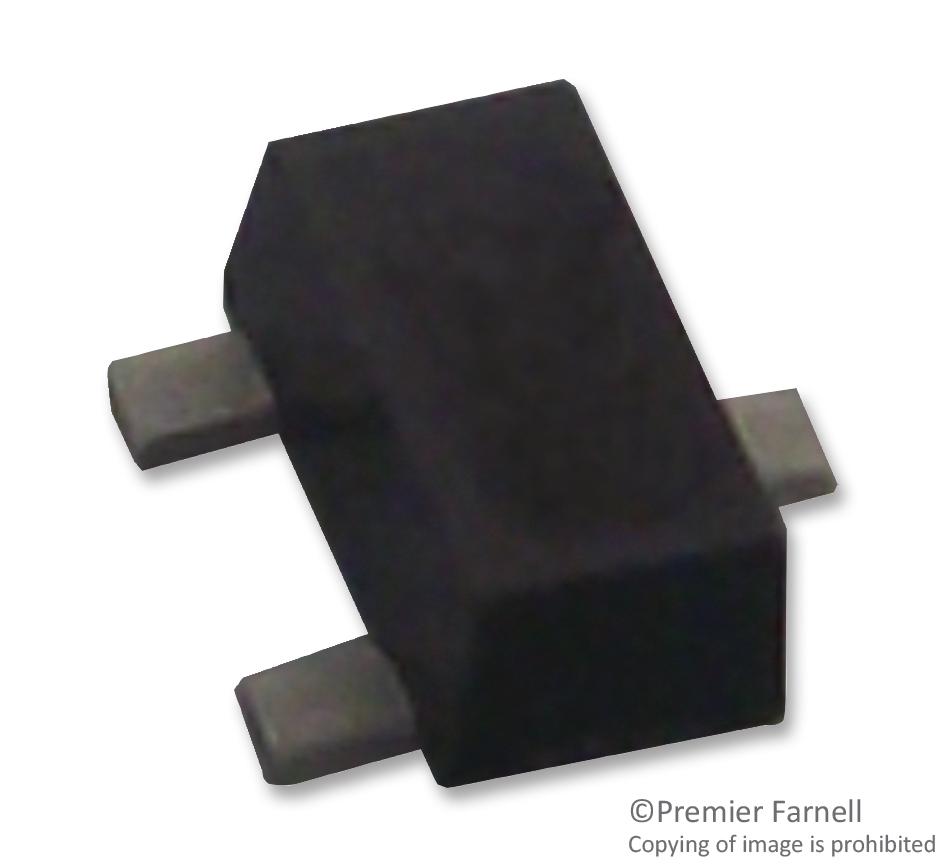

ROHM - 2SK3541T2L - Power MOSFET, N Channel, 30 V, 100 mA, 5 ohm, VMT, Surface Mount
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 100mA
- Drain Source Voltage Vds: 30V
- On Resistance Rds(on): 5ohm
- Rds(on) Test Voltage Vgs: 4V
- Threshold Voltage Vgs: 1.5V
- Power Dissipation Pd: 150mW
- Transistor Case Style: VMT
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2018)
- Current Id Max: 400mA
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Termination Type: Surface Mount Device
- Transistor Type: Small Signal
- Voltage Vds Typ: 30V
- Voltage Vgs Max: 20V
- Voltage Vgs Rds on Measurement: 4V
