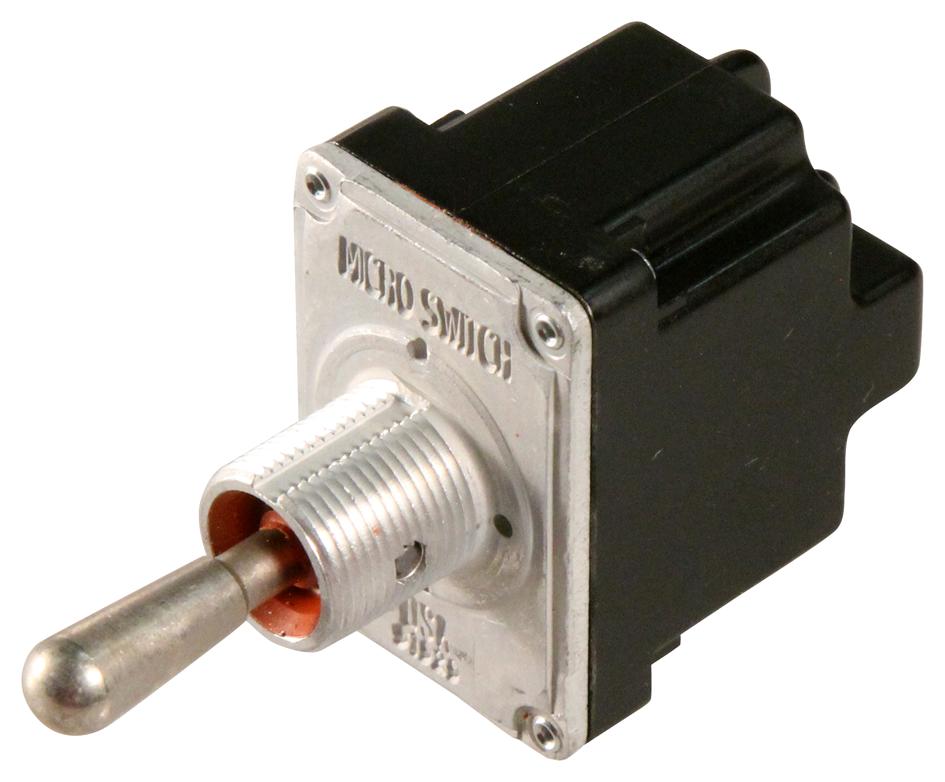

2TL1-7 Toggle Switch, 2POLE, Mom-Off-Mom Honeywell

HONEYWELLUGS :2TL1-7 Code de commande:5082237

Prix:
Prix ​​promotionnel€62,55

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (42 unité)

Documents et téléchargements

description

HONEYWELL - 2TL1-7 - Toggle Switch, (On)-Off-(On), DPDT, Non Illuminated, TL, Panel Mount, 10 A

  • Switch Operation: (On)-Off-(On)
  • Contact Configuration: DPDT
  • Illumination: Non Illuminated
  • Product Range: TL Series
  • Contact Current Max: 10A
  • Switch Mounting: Panel
  • Contact Voltage AC Nom: 250V
  • Switch Terminals: Screw
  • Contact Voltage DC Nom: 28V
  • SVHC: No SVHC (07-Jul-2017)
  • Actuation Type: Bat
  • Bush Thread Length: 11.9mm
  • Contact Current @ Contact Voltage AC Max: 10A
  • Contact Current @ Contact Voltage DC Max: 10A
  • Contact Current AC Max: 15A
  • Contact Current DC Max: 20A
  • Contact Voltage AC Max: 250V
  • Contact Voltage DC Max: 28V
  • External Depth: 22.6mm
  • External Length / Height: 79.3mm
  • External Width: 33.5mm
  • Height: 79.3mm
  • Operating Temperature Max: 71°C
  • Operating Temperature Min: -65°C
  • Thread Size: 15/32" x 32 NS
