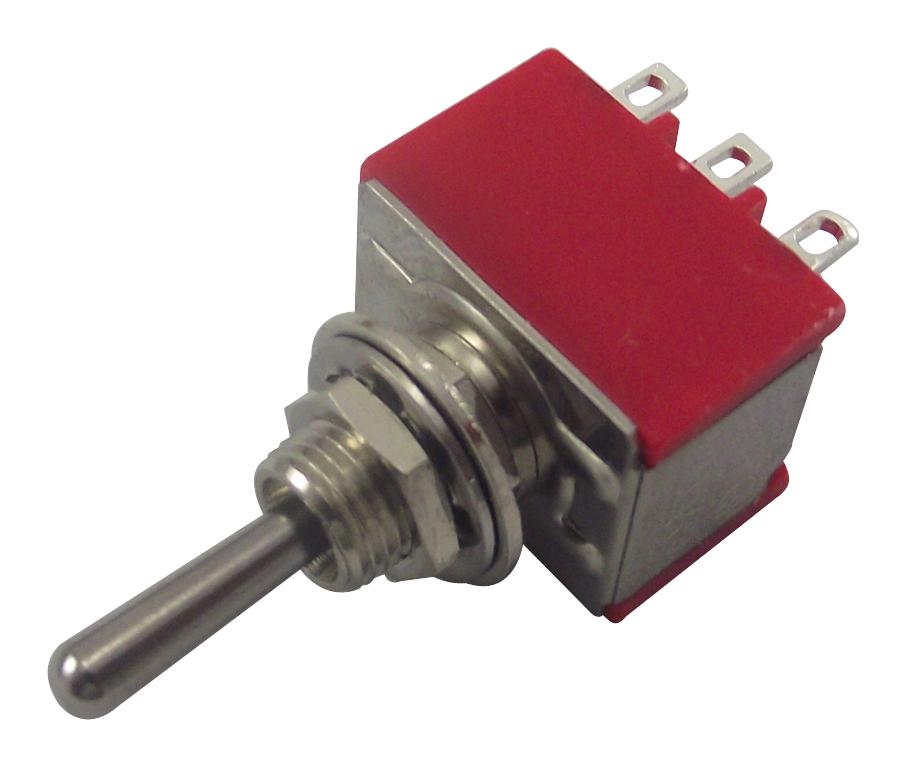

2UD1T1A1M2RE Switch, Ultraminiature, DPDT, On-On multicomp Pro

MULTICOMP PRO - 2UD1T1A1M2RE - Toggle Switch, On-On, DPDT, Non Illuminated, 2UD1, Through Hole, 100 mA

• Switch Operation: On-On
• Contact Configuration: DPDT
• Illumination: Non Illuminated
• Product Range: 2UD1 Series
• Contact Current Max: 100mA
• Switch Mounting: Through Hole
• Contact Voltage AC Nom: 20V
• Switch Terminals: Solder
• Contact Voltage DC Nom: 20V
• SVHC: No SVHC (15-Jan-2018)
• Actuation Type: Bat
• Bush Length: 1.6mm
• Contact Resistance: 100mohm
• Contact Voltage AC Max: 20VAC
• Contact Voltage DC Max: 20VDC
• External Depth: 4.5mm
• External Length / Height: 7mm
• External Width: 7mm
• Flammability Rating: UL 94V-0
• IP / NEMA Rating: IP67
• Insulation Resistance: 500Mohm
• Lever Length: 3.8mm
• Material: Glass Filled Nylon
• No. of Mechanical Operations: 40000
• Operating Temperature Max: 85°C
• Operating Temperature Min: -30°C
• Switching Power Max: 0.4VA
• Tab Blade Thickness: 0.4mm
• Termination Method: Through Hole
