2US1T1A1M6RE Switch, Ultraminiature, SPDT, On-On multicomp Pro

MULTICOMP PROUGS :2US1T1A1M6RE Code de commande:1550206

Prix:
Prix ​​promotionnel€3,13

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (96 unité)

Documents et téléchargements

description

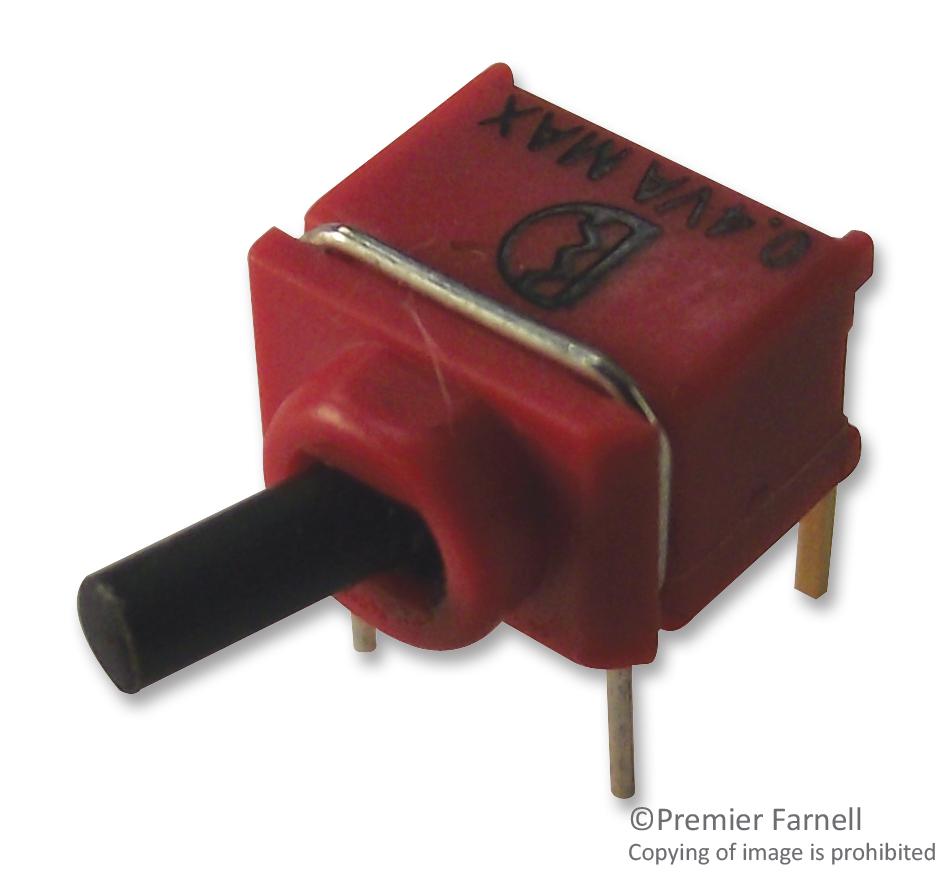

MULTICOMP PRO - 2US1T1A1M6RE - Toggle Switch, On-On, SPDT, Non Illuminated, 2US1, Through Hole, 100 mA

  • Switch Operation: On-On
  • Contact Configuration: SPDT
  • Illumination: Non Illuminated
  • Product Range: 2US1 Series
  • Contact Current Max: 100mA
  • Switch Mounting: Through Hole
  • Contact Voltage AC Nom: 20V
  • Switch Terminals: Solder
  • Contact Voltage DC Nom: 20V
  • SVHC: No SVHC (15-Jan-2018)
  • Actuation Type: Bat
  • Bush Length: 1.6mm
  • Contact Resistance: 100mohm
  • Contact Voltage AC Max: 20VAC
  • Contact Voltage DC Max: 20VDC
  • External Depth: 5.08mm
  • External Length / Height: 4.9mm
  • External Width: 7.8mm
  • Flammability Rating: UL 94V-0
  • IP / NEMA Rating: IP67
  • Insulation Resistance: 500Mohm
  • Lever Length: 3.8mm
  • Material: Glass Filled Nylon
  • No. of Mechanical Operations: 40000
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -30°C
  • Switching Power Max: 0.4VA
  • Tab Blade Thickness: 1.27mm
  • Termination Method: Through Hole
