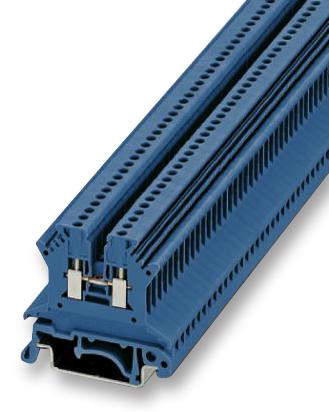

PHOENIX CONTACT - 3005840 - DIN Rail Mount Terminal Block, 2 Ways, 26 AWG, 16 AWG, 1.5 mm², Screw, 17.5 A
- No. of Positions: 2Ways
- Wire Size AWG Min: 26AWG
- Wire Size AWG Max: 16AWG
- Conductor Area CSA: 1.5mm²
- Wire Connection Method: Screw
- Rated Current: 17.5A
- Rated Voltage: 500V
- No. of Levels: 1
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Approvals / Standards: EN 50281, EN 60979, IEC 60079
- Colour: Blue
- Connector Mounting: DIN Rail Mount
- Connector Type: Terminal Block, DIN Rail
- External Width: 4.2mm
- Flexible Wire Area Size Max: 1.5mm²
- Pitch Spacing: 4.2mm
- Voltage Rating VAC: 500V
- Wire Area Size Max: 1.5mm²
- Wire Area Size Min: 0.14mm²
- Working Voltage: 500V
