3071 RD001 WIRE, UL1015, 22AWG, RED, 305M ALPHA WIRE
Survolez l'image pour zoomer Cliquez sur l'image pour zoomer

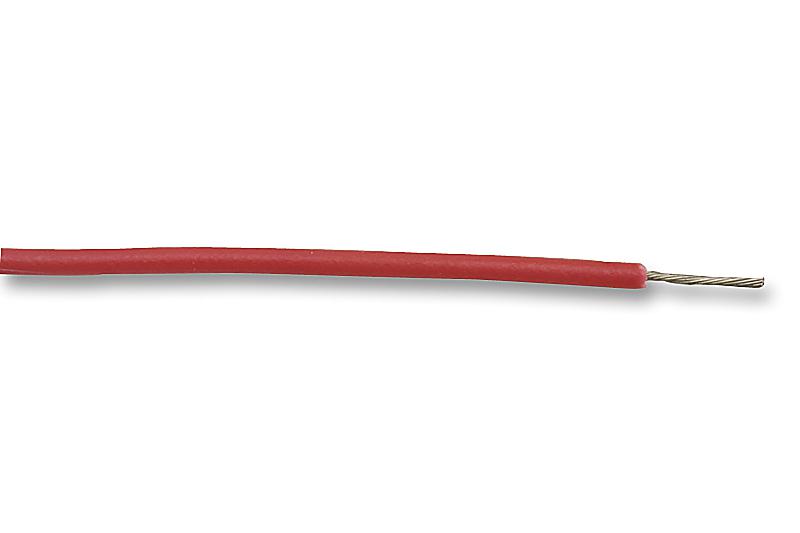

3071 RD001 WIRE, UL1015, 22AWG, RED, 305M ALPHA WIRE

3071 RD001 Wire, UL1015, 22AWG, Red, 305M Alpha Wire

ALPHA WIREUGS :3071 RD001 Code de commande:1199056
Prix:
€123,81

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (9 unité)

Documents et téléchargements

Fiche produit
Fiche produit

description

ALPHA WIRE - 3071 RD001 - Wire, Stranded, Hook Up, UL1015, PVC, Red, 22 AWG, 0.357 mm², 1000 ft, 304.8 m

  • Jacket Material: PVC
  • Jacket Colour: Red
  • Wire Gauge: 22AWG
  • Conductor Area CSA: 0.357mm²
  • Reel Length (Imperial): 1000ft
  • Reel Length (Metric): 304.8m
  • No. of Max Strands x Strand Size: 7 x 30AWG
  • Voltage Rating: 600V
  • Conductor Material: Tinned Copper
  • External Diameter: 2.388mm
  • Approval Specification: CSA AWM I A/B FT1 & TEW 105, UL 1015, 1028, 1230, 1231, 1232, 1283 & 1284, VW-1, UL MTW
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • Cable UL Style Number: UL1015
  • Conductor Make-up: 7 / 30AWG
  • Current Rating: 10A
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -20°C
  • Outer Diameter: 2.38mm
  • Secondary Insulation Colour: Red
  • Secondary Insulation Material: PVC
  • Voltage Rating VAC: 600V
  • Wire Size: 22AWG
