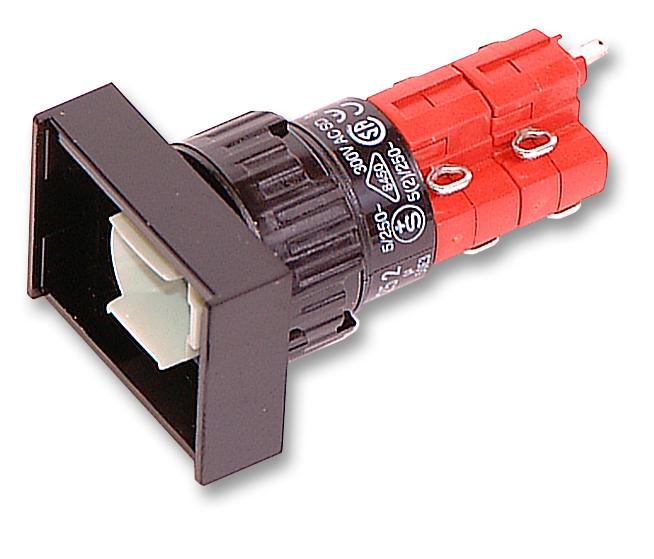

31-122.0252 Switch, 2NO/2NC, Mom Eao

EAOUGS :31-122.0252 Code de commande:3112093

Prix:
Prix ​​promotionnel€80,41

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (42 unité)

Documents et téléchargements

description

EAO - 31-122.0252 - Pushbutton Switch, 31, 16 mm, DPST-NO, DPST-NC, Momentary, Rectangular

  • Product Range: 31 Series
  • Contact Configuration: DPST-NO, DPST-NC
  • Switch Operation: Momentary
  • Contact Current Max: 5A
  • Contact Voltage AC Nom: 250V
  • Illumination Colour: -
  • Contact Voltage DC Nom: 250V
  • Switch Terminals: Solder Lug
  • SVHC: No SVHC (15-Jan-2018)
  • Actuation Type: Rectangular
  • Behind Panel Depth: 36.5mm
  • Contact Current @ Contact Voltage AC Max: 5A
  • Contact Current AC Max: 5A
  • Contact Voltage VAC: 250V
  • External Depth: 36.5mm
  • External Length / Height: 18mm
  • External Width: 24mm
  • IP / NEMA Rating: IP40
  • IP Rating: IP40
  • No. of Mechanical Operations: 1000000
  • Operating Force Max: 5.5N
  • Operating Force Min: 2N
  • Operating Temperature Max: 55°C
  • Operating Temperature Min: -25°C
  • Panel Cutout Diameter: 16mm
  • Pushbutton Actuator Style: Rectangular
  • Pushbutton Switch Type: Standard
  • Switch Mounting: Panel
  • Switching Current AC Max: 5A
  • Switching Current AC Min: 10mA
  • Travel: 3mm
