31-281.0252 Switch, 1NO/1NC, Maintained Eao

EAOUGS :31-281.0252 Code de commande:3112159

Prix:
Prix ​​promotionnel€57,54

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (129 unité)

Documents et téléchargements

description

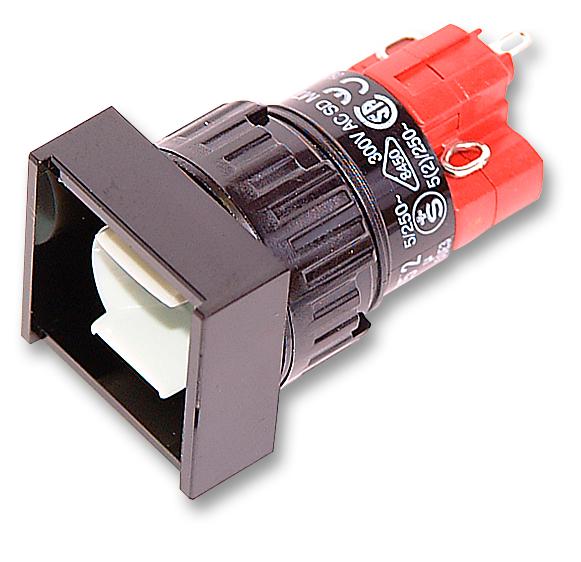

EAO - 31-281.0252 - Pushbutton Switch, 31, 16 mm, SPST-NO, SPST-NC, Maintained, Square

  • Product Range: 31 Series
  • Contact Configuration: SPST-NO, SPST-NC
  • Switch Operation: Maintained
  • Contact Current Max: 5A
  • Contact Voltage AC Nom: 250V
  • Illumination Colour: -
  • Contact Voltage DC Nom: 250V
  • Switch Terminals: Solder Lug
  • SVHC: No SVHC (15-Jan-2018)
  • Actuation Type: Square
  • Behind Panel Depth: 29mm
  • Contact Current @ Contact Voltage AC Max: 250A
  • Contact Current AC Max: 5A
  • Contact Current Rating: 5A
  • Contact Voltage VAC: 250V
  • External Depth: 37mm
  • External Length / Height: 18mm
  • External Width: 18mm
  • IP Rating: IP40
  • No. of Mechanical Operations: 1000000
  • Operating Force Max: 5.5N
  • Operating Force Min: 2N
  • Operating Temperature Max: 55°C
  • Operating Temperature Min: -25°C
  • Panel Cutout Diameter: 16mm
  • Pushbutton Actuator Style: Square
  • Pushbutton Switch Type: Standard
  • Switch Mounting: Panel
  • Switching Current AC Max: 5A
  • Switching Current AC Min: 10mA
  • Travel: 3mm
