31-453.036 Switch, 1NO/1NC, Mom Eao

EAOUGS :31-453.036 Code de commande:925044

Prix:
Prix ​​promotionnel€54,90

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Seulement 3 produits disponibles

Documents et téléchargements

description

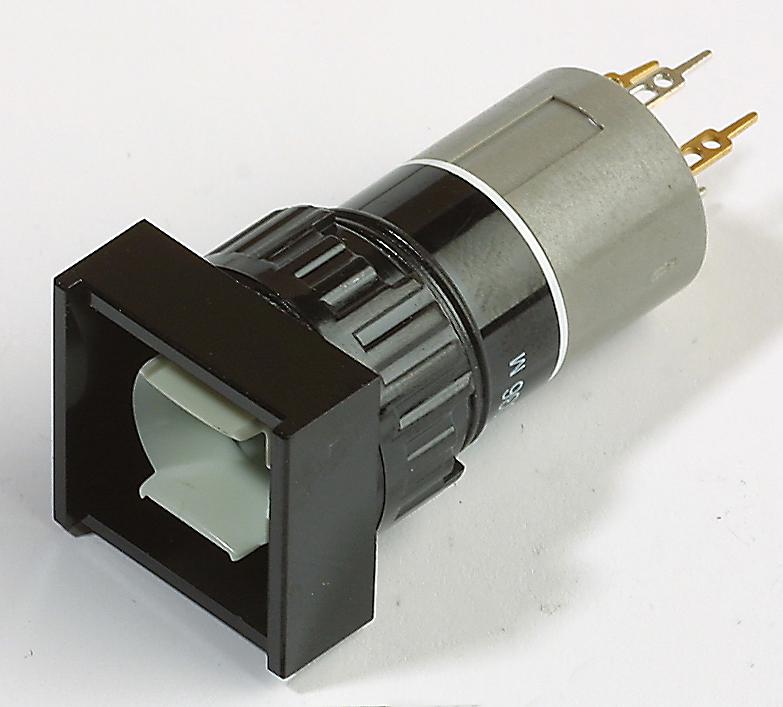

EAO - 31-453.036 - Pushbutton Switch, 31, 16 mm, SPST-NO, SPST-NC, Momentary, Square

  • Product Range: 31 Series
  • Contact Configuration: SPST-NO, SPST-NC
  • Switch Operation: Momentary
  • Contact Current Max: 100mA
  • Contact Voltage AC Nom: 42V
  • Illumination Colour: -
  • Contact Voltage DC Nom: 42V
  • Switch Terminals: PC Pin
  • SVHC: No SVHC (15-Jan-2018)
  • Actuation Type: Square
  • Approval Bodies: CSA, LLOYDS, NEMKO, OVE, SEV, UL, VDE
  • Behind Panel Depth: 36mm
  • Contact Current @ Contact Voltage DC Min: 10µA
  • Contact Current AC Max: 100mA
  • Contact Current DC Max: 100mA
  • Contact Resistance: 50mohm
  • Contact Voltage DC Min: 100µV
  • Contact Voltage VAC: 42V
  • Contact Voltage VDC: 42V
  • External Depth: 18mm
  • External Length / Height: 18mm
  • External Width: 18mm
  • IP Rating: IP40
  • No. of Mechanical Operations: 5000000
  • Operating Temperature Max: 55°C
  • Operating Temperature Min: -25°C
  • Operating Time: 100µs
  • Panel Cutout Diameter: 16mm
  • Pushbutton Actuator Style: Square
  • Pushbutton Switch Type: Standard
  • Switch Mounting: Panel
