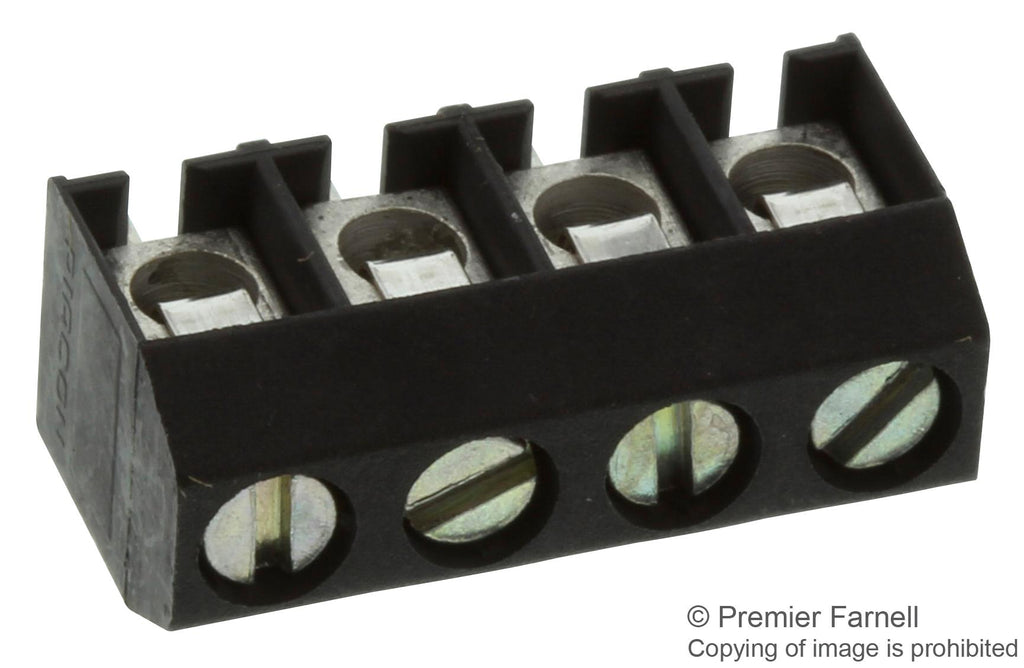

METZ CONNECT - 31101104 - Wire-To-Board Terminal Block, 5.08 mm, 4 Ways, 28 AWG, 14 AWG, 1.5 mm², Screw
- Pitch Spacing: 5.08mm
- No. of Positions: 4Ways
- Wire Size AWG Min: 28AWG
- Wire Size AWG Max: 14AWG
- Conductor Area CSA: 1.5mm²
- Wire Connection Method: Screw
- Rated Current: 13A
- Rated Voltage: 130V
- Block Orientation: Through Hole Right Angle
- Product Range: -
- SVHC: No SVHC (07-Jul-2017)
- Colour: Light Grey
- Connector Mounting: PCB Mount
- Connector Type: Terminal Block, PCB
- Contact Material: Phosphor Bronze
- External Height: 10mm
- External Length / Height: 20mm
- External Width: 8mm
- Flammability Rating: UL94V-2
- Height: 20mm
- Material: Polyamide 6.6 UL94V-2
- Operating Temperature Max: 100°C
- Pin Diameter: 0.9mm
- Voltage Rating VAC: 125V
- Wire Area Size Max: 1.5mm²
