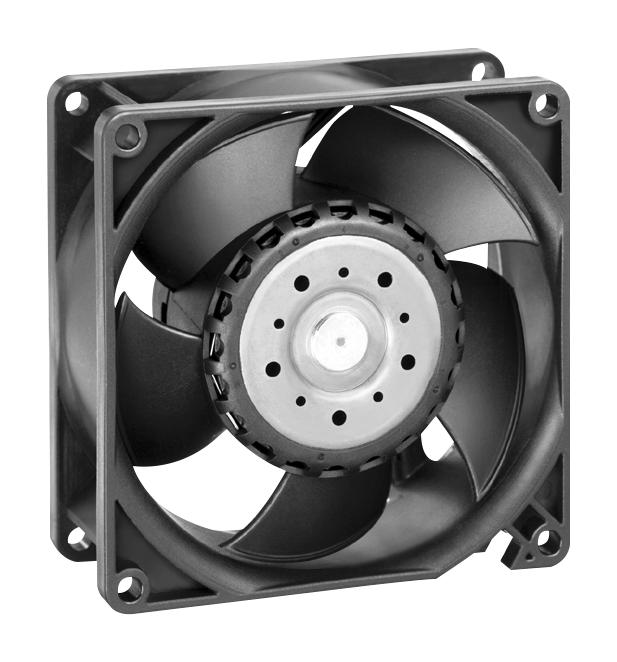

EBM-PAPST - 3212JH3 - DC Axial Fan, 12 V, Square, 92 mm, 38 mm, Ball Bearing, 139.5 CFM
- Supply Voltage: 12V
- Current Type: DC
- Fan Frame Size: 92mm
- External Depth: 38mm
- Noise Rating: 69dBA
- Flow Rate - Imperial: 139.5cu.ft/min
- Flow Rate - Metric: 237m³/h
- Bearing Type: Ball
- Power Connection Type: 2 Lead Wires
- Current Rating: -
- Product Range: 3200J Series
- Power Rating: -
- IP Rating: IP54, IP68
- SVHC: No SVHC (15-Jan-2019)
- External Height: 92mm
- External Width: 92mm
- Frame Dimensions: 92mm x 92mm x 38mm
- Input Voltage Max: 13.8VDC
- Input Voltage Min: 6VDC
- Lead Length: 310mm
- Operating Temperature Max: 70°C
- Operating Temperature Min: -20°C
- Power Consumption: 30W
- Type: S-Force
