description

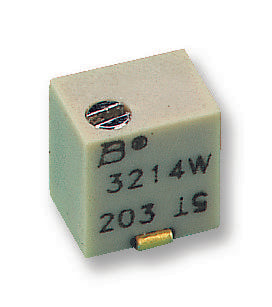

BOURNS - 3214W-1-104E - Trimpot, Multi Turn, Cermet, Top Adjust, 100 kohm, Surface Mount, 5 Turns
- Track Resistance: 100kohm
- No. of Turns: 5Turns
- Potentiometer Mounting: Surface Mount Device
- Product Range: Trimpot 3214 Series
- Power Rating: 250mW
- Resistance Tolerance: ± 10%
- Temperature Coefficient: ± 100ppm/°C
- Automotive Qualification Standard: AEC-Q200
- MSL: -
- SVHC: Lead (15-Jan-2019)
- Adjustment Type: Screwdriver Slot
- Contact Resistance Variation +: 3%
- End Resistance: 1000ohm
- External Depth: 3.9mm
- External Length / Height: 5.1mm
- External Width: 4.8mm
- Operating Temperature Max: 150°C
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Proof Voltage: 600V
- Reel Quantity: 250
- Resistance: 100kohm
- Resistor Element Material: Cermet
- Resistor Mounting: Surface Mount Device
- Tape Width: 16mm
- Temperature Coeff. +: 100ppm/°C
- Temperature Coeff. -: 100ppm/°C
- Tolerance +: 10%
- Tolerance -: 10%
- Track Taper: Linear
- Voltage Rating: 300V
- Voltage Rating V DC: 300V
