3250 OR001 Wire, UL1061, 24AWG, Orange, 305M Alpha Wire

ALPHA WIREUGS :3250 OR001 Code de commande:1199010

Prix:
Prix ​​promotionnel€105,64

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (16 unité)

Documents et téléchargements

description

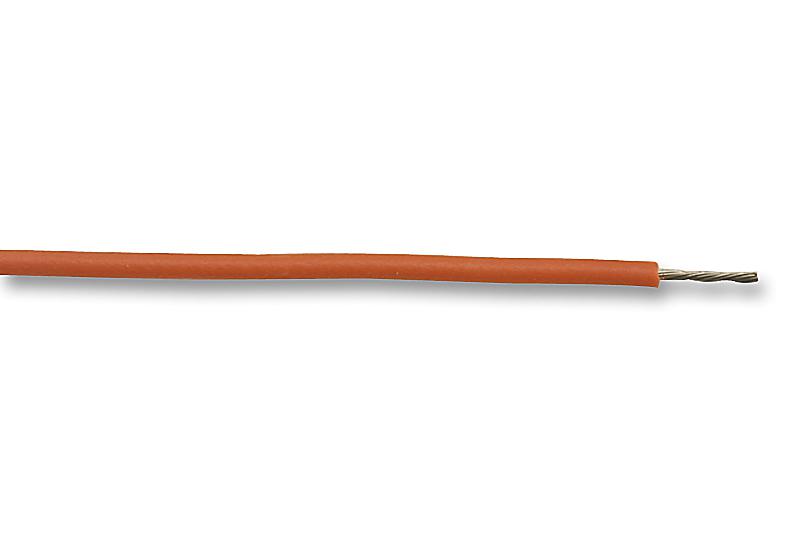

ALPHA WIRE - 3250 OR001 - Wire, Stranded, Hook Up, UL1061, PVC, Orange, 24 AWG, 0.229 mm², 1000 ft, 305 m

  • Jacket Material: PVC
  • Jacket Colour: Orange
  • Wire Gauge: 24AWG
  • Conductor Area CSA: 0.229mm²
  • Reel Length (Imperial): 1000ft
  • Reel Length (Metric): 305m
  • No. of Max Strands x Strand Size: 7 x 0.2mm
  • Voltage Rating: 300V
  • Conductor Material: Tinned Copper
  • External Diameter: 1.07mm
  • Approval Specification: CSA AWM I A/B FT1, UL 1061 VW-1
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • Cable UL Style Number: UL1061
  • Conductor Make-up: 7 / 32AWG
  • Current Rating: 6A
  • Operating Temperature Max: 80°C
  • Operating Temperature Min: -10°C
  • Outer Diameter: 1.07mm
  • Secondary Insulation Colour: Orange
  • Secondary Insulation Material: PVC
  • Voltage Rating VAC: 300V
  • Wire Size: 24AWG
