34.51.7.012.0010 Relay, SPDT, 250VAC, 6a Finder

FINDERUGS :34.51.7.012.0010 Code de commande:1169339

Prix:
Prix ​​promotionnel€14,51

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (5113 unité)

Documents et téléchargements

description

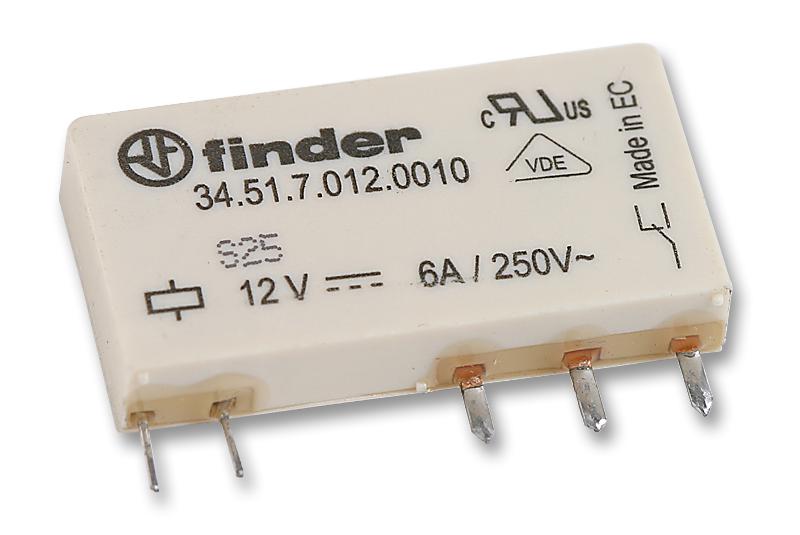

FINDER - 34.51.7.012.0010 - General Purpose Relay, Ultra-Slim, 34 Series, Power, SPDT, 12 VDC, 6 A

  • Contact Configuration: SPDT
  • Coil Voltage: 12VDC
  • Contact Current: 6A
  • Product Range: 34 Series
  • Relay Mounting: Through Hole
  • Coil Type: DC Sensitive
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: -
  • Contact Material: Silver Nickel
  • Coil Resistance: 840ohm
  • SVHC: No SVHC (15-Jan-2019)
  • Coil Current: 14.2mA
  • Coil Voltage VDC Nom: 12V
  • Contact Current AC Max: 6A
  • Contact Current Max: 10A
  • Contact Voltage AC Nom: 250V
  • Current Rating: 6A
  • External Depth: 5mm
  • External Height: 15mm
  • External Width: 28mm
  • Nom Operating Power: 170mW
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Relay Type: Power - General Purpose
