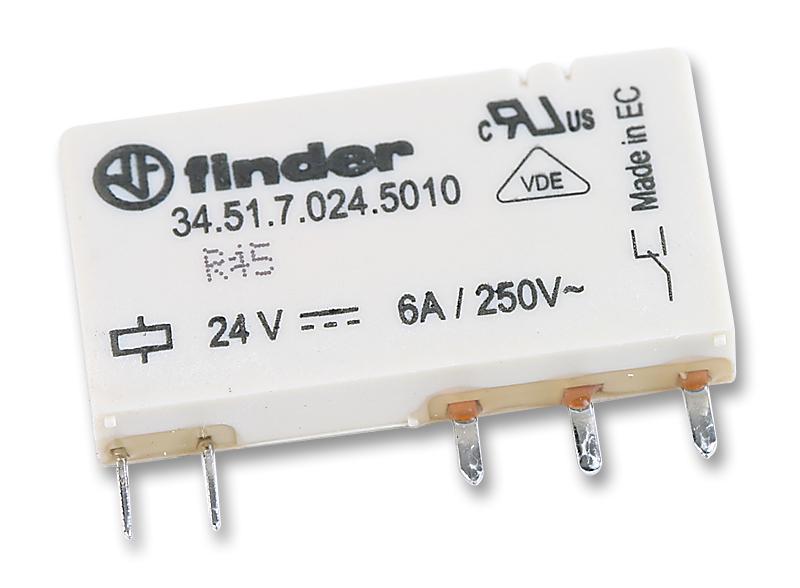

34.51.7.024.5010 Relay, SPDT, 250VAC, 6a Finder

FINDERUGS :34.51.7.024.5010 Code de commande:1169343

Prix:
Prix ​​promotionnel€20,31

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1129 unité)

Documents et téléchargements

description

FINDER - 34.51.7.024.5010 - General Purpose Relay, 34 Series, SPDT, 24 VDC, 6 A

  • Contact Configuration: SPDT
  • Coil Voltage: 24VDC
  • Contact Current: 6A
  • Product Range: 34 Series
  • Relay Mounting: Through Hole
  • Coil Type: DC Sensitive
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 30V
  • Contact Material: Silver Nickel Gold
  • Coil Resistance: 3.35kohm
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Bodies: CSA, GOST, UL, VDE
  • Coil Current: 7.1mA
  • Coil Voltage VDC Nom: 24V
  • Contact Current AC Max: 6A
  • Contact Current Max: 10A
  • Contact Current Rating: 6A
  • Contact Voltage AC Max: 400V
  • Contact Voltage AC Nom: 250V
  • DC Coil Power: 0.17W
  • External Depth: 5mm
  • External Height: 15mm
  • External Length / Height: 15mm
  • External Width: 28mm
  • No. of Mechanical Operations: 10000000
  • Nom Operating Power: 170mW
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Power Rating: 1.5kVA
  • Relay Type: General Purpose
  • Switching Voltage AC / DC Min: 250VAC
