35507-1200 Connector, Rcpt, 12Pos, 1ROW, 2mm Molex

MOLEXUGS :35507-1200 Code de commande:3221766

Prix:
Prix ​​promotionnel€0,63

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (9216 unité)

description

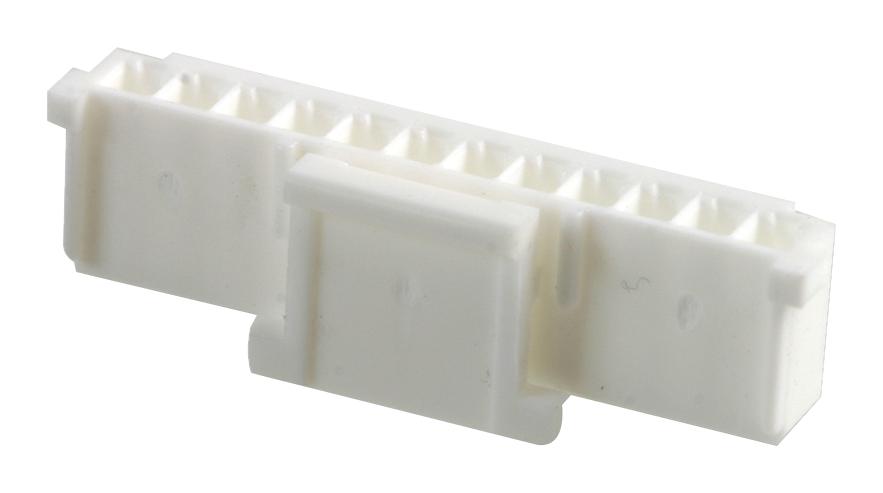

MOLEX - 35507-1200 - Connector Housing, Sherlock 35507, Receptacle, 12 Ways, 2 mm, 50212 Crimp Terminal

  • Pitch Spacing: 2mm
  • No. of Contacts: 12Contacts
  • Gender: Receptacle
  • Product Range: Sherlock 35507 Series
  • Contact Termination Type: Crimp
  • No. of Rows: 1Rows
  • Contact Plating: -
  • Contact Material: -
  • SVHC: No SVHC (15-Jan-2019)
  • Contact Resistance Max: 20mohm
  • Current Max: 2A
  • External Depth: 7mm
  • External Length / Height: 2.15mm
  • External Width: 27.1mm
  • Flammability Rating: UL94V-0
  • For Use With: 50212 Series Socket Crimp Terminals
  • Insulation Resistance: 1000Mohm
  • No. of Positions: 12Ways
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -40°C
  • Voltage Rating V DC: 125V
  • Voltage Rating VAC: 125V
  • Withstand Voltage: 500VAC
