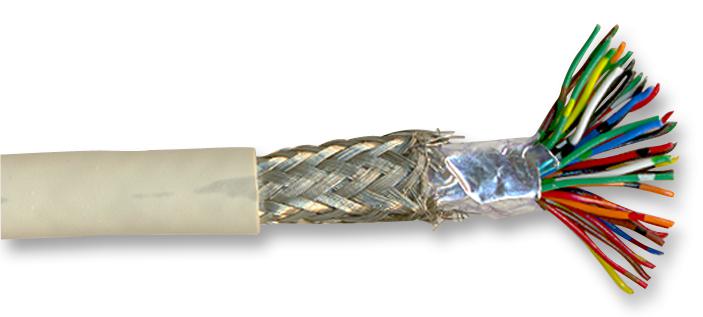

3M - 3600B-40 (300FT) - Multipair Cable, Discrete Wire, Screened, 20 Pair, 28 AWG, 0.013 mm², 300 ft, 91 m
- Cable Shielding: Screened
- No. of Pairs: 20 Pair
- Wire Gauge: 28AWG
- Conductor Area CSA: 0.013mm²
- Reel Length (Imperial): 300ft
- Reel Length (Metric): 91m
- Jacket Colour: Beige
- No. of Max Strands x Strand Size: 7 x 0.127mm
- Voltage Rating: 50V
- Jacket Material: PVC
- Conductor Material: Tinned Copper
- External Diameter: 7.6mm
- Product Range: 3600B Series
- SVHC: No SVHC (15-Jan-2018)
- Cable Type: Foil + Braided Shield
- Conductor Make-up: 7 / 36AWG
- Impedance: 91ohm
- No. of Cores: 40Core
- Nominal Capacitance: 50.2pF/m
- Outer Diameter: 7.6mm
- Secondary Insulation Colour: Beige
- Secondary Insulation Material: PVC
- Velocity of Propagation (%): 60%
- Wire Size: 28AWG
