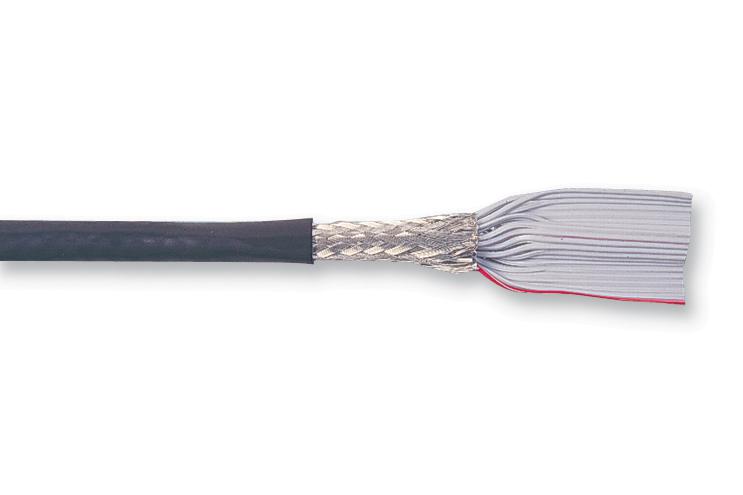

3M - 3659-34 - Ribbon Cable, Round Jacketed Flat, Screened, 34 Core, 28 AWG, 0.072 mm², 100 ft, 30.5 m
- Cable Shielding: Screened
- No. of Cores: 34Core
- Wire Gauge: 28AWG
- Conductor Area CSA: 0.072mm²
- Reel Length (Imperial): 100ft
- Reel Length (Metric): 30.5m
- Jacket Colour: Black
- Cable Width: 41.9mm
- No. of Max Strands x Strand Size: 7 x 36AWG
- Pitch Spacing: 1.27mm
- Voltage Rating: 300V
- Conductor Material: Tinned Copper
- Jacket Material: PVC
- Ribbon Cable Type: Round Jacketed Flat Ribbon Cable
- Product Range: 3659 Series
- Approval Bodies: UL
- Cable Type: Shielded Round to Flat
- Cable UL Style Number: UL20267
- Capacitance: 90.9pF/m
- Colour: Grey
- Conductor Make-up: 7/36AWG
- Impedance: 62ohm
- Inductance: 0.43µH
- Insulation Resistance: 10000Mohm
- Operating Temperature Max: 80°C
- Screen Type Primary: Aluminised Polyester Tape
- Screen Type, Secondary: Tinned copper braid
- Secondary Insulation Colour: Black
- Secondary Insulation Material: PVC
