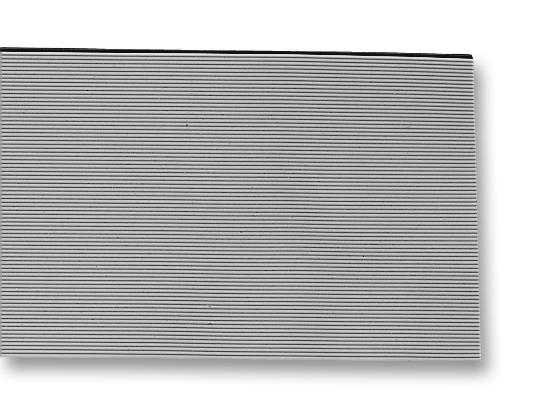

3M - 3801/10 - Ribbon Cable, Round Conductor Flat, Per M, Unscreened, 10 Core, 26 AWG
- Cable Shielding: Unscreened
- No. of Cores: 10Core
- Wire Gauge: 26AWG
- Conductor Area CSA: -
- Reel Length (Imperial): -
- Reel Length (Metric): -
- Jacket Colour: Grey
- Cable Width: 12.7mm
- No. of Max Strands x Strand Size: 7 x 34AWG
- Pitch Spacing: 1.27mm
- Voltage Rating: 300V
- Conductor Material: Tinned Copper
- Jacket Material: PVC
- Ribbon Cable Type: Flat Ribbon Cable
- Product Range: 3801 Series
- Cable Type: Flat (Ribbon)
- Capacitance: 53.1pF/m
- Impedance: 89ohm
- Inductance: 0.43µH/m
- Operating Temperature Max: 105°C
- Operating Temperature Min: -20°C
- Velocity of Propagation (%): 71%
