3811/20 Ribbon Cable, Pvc, 20WAY, Per M 3M

3MUGS :3811/20 Code de commande:1797577

Prix:
Prix ​​promotionnel€12,65

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (29 unité)

Documents et téléchargements

description

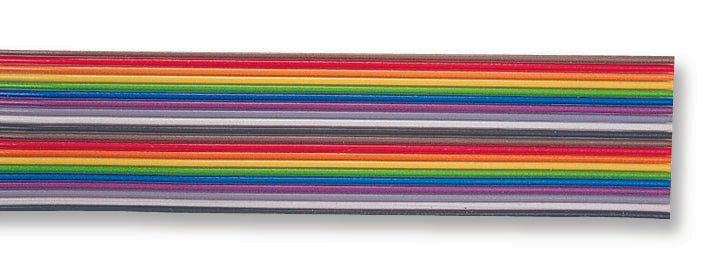

3M - 3811/20 - Ribbon Cable, Colour Coded Flat, Zippable, Per M, Unscreened, 20 Core, 26 AWG

  • Cable Shielding: Unscreened
  • No. of Cores: 20Core
  • Wire Gauge: 26AWG
  • Conductor Area CSA: -
  • Reel Length (Imperial): -
  • Reel Length (Metric): -
  • Jacket Colour: Multi-coloured
  • Cable Width: 25.4mm
  • No. of Max Strands x Strand Size: 7 x 34AWG
  • Pitch Spacing: 1.27mm
  • Voltage Rating: 300V
  • Conductor Material: Tinned Copper
  • Jacket Material: PVC
  • Ribbon Cable Type: Flat Ribbon Cable
  • Product Range: 3811 Series
  • Cable Type: Flat (Ribbon)
  • Capacitance: 48.6pF/m
  • Impedance: 95ohm
  • Inductance: 0.43µH/m
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -20°C
  • Velocity of Propagation (%): 72%
