39514000000 Fuse, Quick Blow, TE5, 4A LITTELFUSE

LITTELFUSEUGS :39514000000 Code de commande:9516220

Prix:
Prix ​​promotionnel€2,15

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (179 unité)

Documents et téléchargements

description

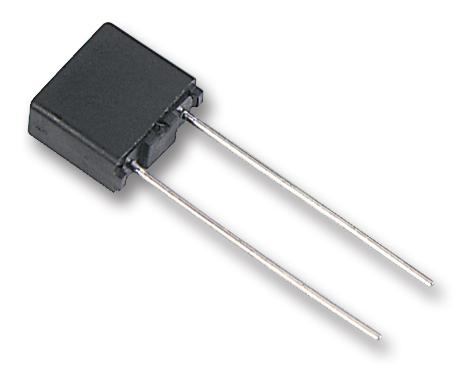

LITTELFUSE - 39514000000 - Fuse, PCB Leaded, 4 A, 125 VAC, TE5, Fast Acting, Radial Leaded

  • Fuse Current: 4A
  • Voltage Rating VAC: 125VAC
  • Product Range: TE5 Series
  • Voltage Rating V DC: -
  • Blow Characteristic: Fast Acting
  • Fuse Case Style: Radial Leaded
  • Breaking Capacity Current AC: 100A
  • Breaking Capacity Current DC: -
  • Breaking Capacity: 100A @ 125V AC
  • Case Material: Thermoplastic
  • External Depth: 4mm
  • External Length / Height: 8mm
  • External Width: 8.5mm
  • Flammability Rating: UL94V-0
  • Fuse Breaking Capacity Voltage AC: 125V
  • Fuse Mounting: Through Hole
  • Fuse Size Code: TE5
  • Fuse Size Imperial: 0.33" x 0.3"
  • Fuse Size Metric: 8.5mm x 8mm
  • Fuse Type Blowing Characteristic: Quick Blow
  • Lead Diameter: 0.6mm
  • Lead Length: 18.8mm
  • Lead Spacing: 5.08mm
  • PCB Hole Diameter: 1mm
