4-1473562-4 Plug, Green, 1.35-1.6mm Te Connectivity

TE CONNECTIVITYUGS :4-1473562-4 Code de commande:9701974

Prix:
Prix ​​promotionnel€8,62

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (5156 unité)

Documenten en downloads

description

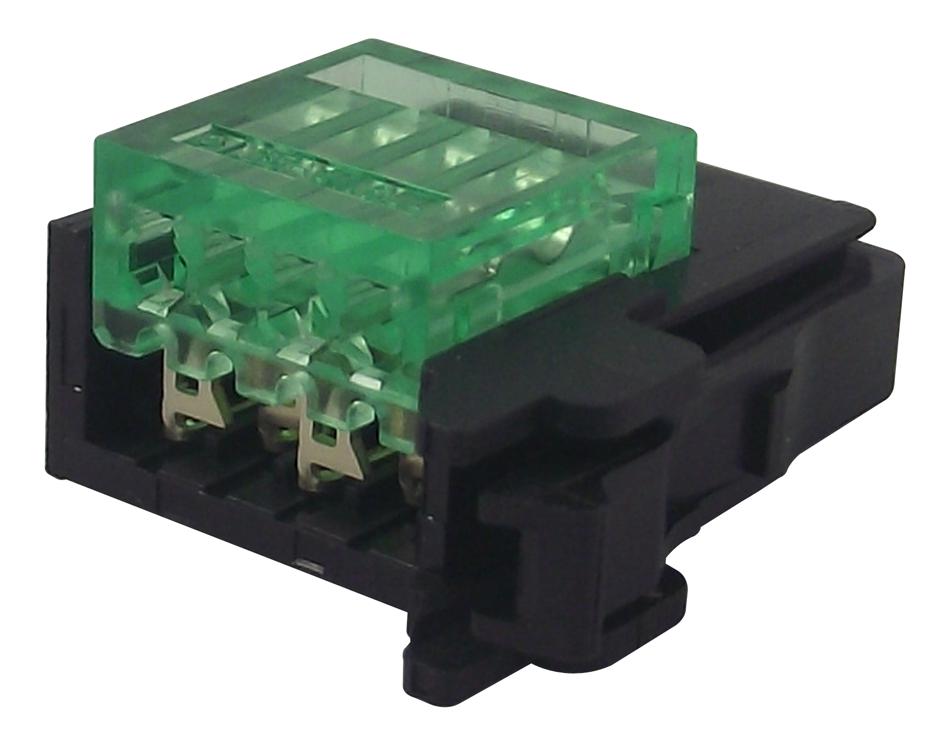

TE CONNECTIVITY - 4-1473562-4 - Rectangular Power Connector, Green, 4 Contacts, RITS, Cable Mount, IDC / IDT, 2 mm, Plug

  • Pitch Spacing: 4mm
  • No. of Contacts: 4Contacts
  • Gender: Plug
  • Product Range: RITS Series
  • Contact Termination Type: IDC / IDT
  • No. of Rows: 1Rows
  • Contact Plating: Gold Plated Contacts
  • Contact Material: Copper
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Bodies: UL
  • Colour: Green
  • Current Rating: 3A
  • De-mating Force: 0.1N
  • External Length / Height: 8.2mm
  • External Width: 16.1mm
  • Flammability Rating: UL94V-0
  • Insulation Diameter Max: 1.6mm
  • Insulation Diameter Min: 1.35mm
  • Length: 18.5mm
  • Material: PBT / Polycarbonate
  • Mating Force: 1.5N
  • Voltage Rating VAC: 32V
  • Wire Area Size Max: 0.5mm²
  • Wire Area Size Min: 0.3mm²
  • Wire Size AWG Max: 20AWG
  • Wire Size AWG Min: 22AWG
  • Withstand Voltage: 500V
