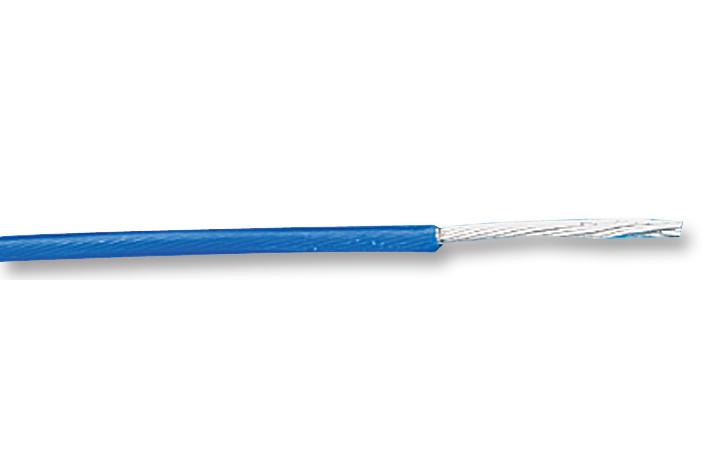

4160302 Wire, MULTINORM, Blue, 1.0mm, 100m Lapp Kabel

LAPP KABELUGS :4160302 Code de commande:1204260

Prix:
Prix ​​promotionnel€51,27

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (268 unité)

Documents et téléchargements

description

LAPP KABEL - 4160302 - Wire, Stranded, Hook Up, UL1015, PVC, Blue, 18 AWG, 1 mm², 328 ft, 100 m

  • Jacket Material: PVC
  • Jacket Colour: Blue
  • Wire Gauge: 18AWG
  • Conductor Area CSA: 1mm²
  • Reel Length (Imperial): 328ft
  • Reel Length (Metric): 100m
  • No. of Max Strands x Strand Size: -
  • Voltage Rating: 600V
  • Conductor Material: Tinned Copper
  • External Diameter: 2.9mm
  • Approval Specification: -
  • Product Range: Multi Standard SC 2.1 Series
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Bodies: CSA, HAR, MTW, UL
  • Core-Earth / Core-Core Voltage Rating: 450/750 V
  • Current Rating: 15A
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -40°C
  • Outer Diameter: 2.9mm
  • Test Voltage: 3000V
  • Voltage Rating VAC: 600V
  • Wire Size: 18AWG
