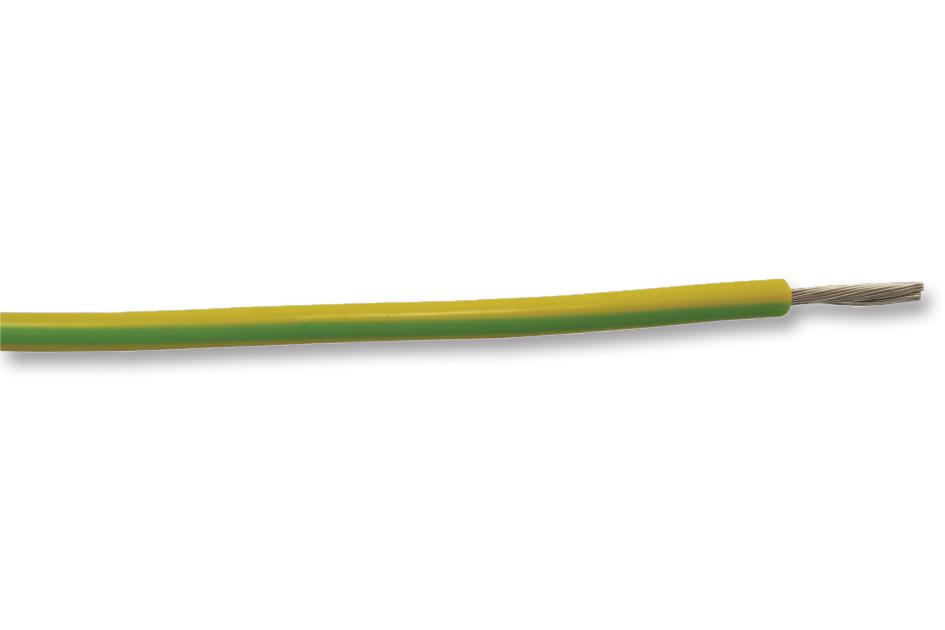

4160500 Wire, Style 1015, GRN/Yel, 2.5mm, 100m Lapp Kabel

LAPP KABELUGS :4160500 Code de commande:1285726

Prix:
Prix ​​promotionnel€104,21

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (141 unité)

Documents et téléchargements

description

LAPP KABEL - 4160500 - Wire, Stranded, Hook Up, UL1015, PVC, Green, Yellow, 2.5 mm², 328 ft, 100 m

  • Jacket Material: PVC
  • Jacket Colour: Green, Yellow
  • Wire Gauge: -
  • Conductor Area CSA: 2.5mm²
  • Reel Length (Imperial): 328ft
  • Reel Length (Metric): 100m
  • No. of Max Strands x Strand Size: -
  • Voltage Rating: 600V
  • Conductor Material: Tinned Copper
  • External Diameter: 3.7mm
  • Approval Specification: -
  • Product Range: Multi Standard SC 2.1 Series
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Bodies: CSA, HAR, MTW, UL
  • Core-Earth / Core-Core Voltage Rating: 450/750 V
  • Current Rating: 26A
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -40°C
  • Outer Diameter: 3.7mm
  • Test Voltage: 3000V
  • Voltage Rating VAC: 600V
