4.16.10.08.64 Cap, 5µF, 450VAC, 5%, PP, Can, Panel DUCATI

DUCATIUGS :4.16.10.08.64 Code de commande:1219053

Prix:
Prix ​​promotionnel€9,66

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (95 unité)

Documents et téléchargements

description

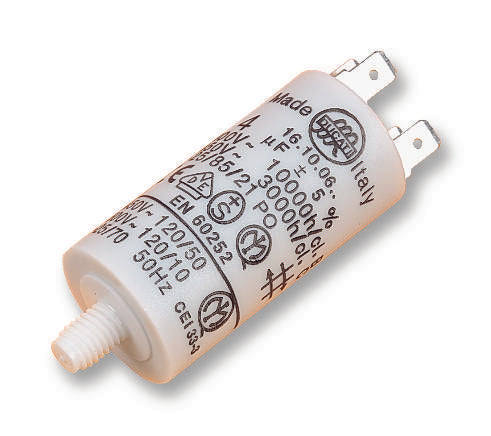

DUCATI - 4.16.10.08.64 - Motor Run Capacitor, Metallized PP, Can, 5 µF, ± 5%, 450 V

  • Capacitance: 5µF
  • Product Range: 4.16.10 Series
  • Voltage Rating: 450VAC
  • Capacitor Terminals: Quick Connect, Snap-In
  • Capacitance Tolerance: ± 5%
  • dv/dt Rating: -
  • Capacitor Dielectric Type: PP (Polypropylene)
  • Capacitor Case Style: Can
  • Height: 55mm
  • Diameter: 28mm
  • Stud Size - Metric: -
  • Operating Temperature Min: -25°C
  • Operating Temperature Max: 85°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (07-Jul-2017)
  • Body Diameter: 28mm
  • Capacitance Tolerance ±: ± 5%
  • Capacitor Application: Motor Start / Motor Run
  • Capacitor Mounting: Panel
  • Dissipation Factor: 0.002%
  • Dissipation Factor Temperature: 20°C
  • External Length / Height: 55mm
  • Lead Length: 6.35mm
  • Lead Spacing: 14.4mm
  • No. of Pins: 2Pins
  • Operating Temperature Range: -25°C to +85°C
  • Thread Size: M8x10
  • Tolerance +: 5%
  • Tolerance -: 5%
  • Voltage Rating VAC: 450V
