4412FGM Fan, 119mm, 12VDC ebm-papst

EBM-PAPSTUGS :4412FGM Code de commande:9601066

Prix:
Prix ​​promotionnel€63,46

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (26 unité)

Documents et téléchargements

description

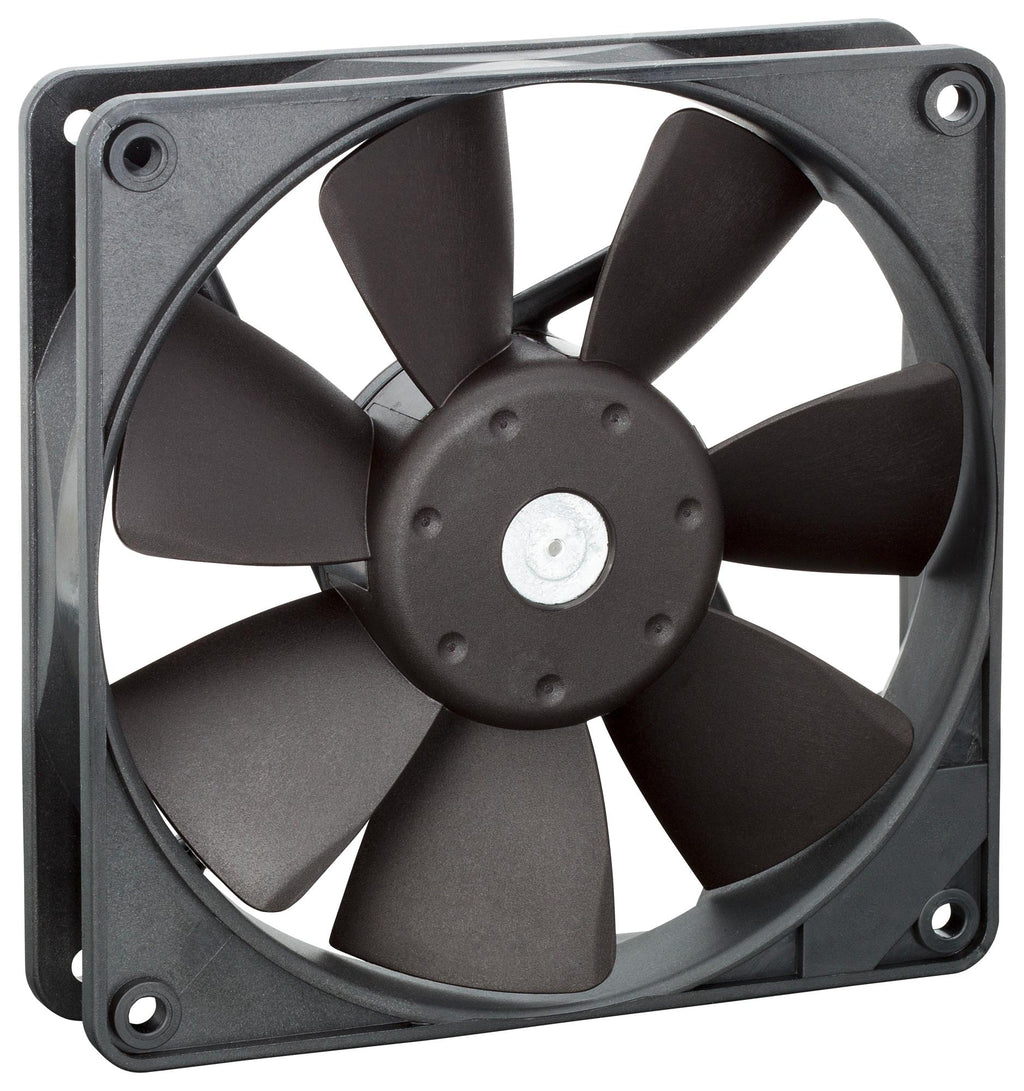

EBM-PAPST - 4412FGM - DC Axial Fan, 12 V, Square, 119 mm, 25 mm, Sleeve Bearing, 82.4 CFM

  • Supply Voltage: 12V
  • Current Type: DC
  • Fan Frame Size: 119mm
  • External Depth: 25mm
  • Noise Rating: 38dBA
  • Flow Rate - Imperial: 82.4cu.ft/min
  • Flow Rate - Metric: 140m³/h
  • Bearing Type: Sleeve
  • Power Connection Type: 2 Lead Wires
  • Current Rating: -
  • Product Range: 4400F Series
  • Power Rating: -
  • IP Rating: -
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Bodies: CSA, UL, VDE
  • External Height: 119mm
  • External Width: 119mm
  • Fixing Centres: 104.8mm
  • Fixing Hole Diameter: 4.5mm
  • Frame Dimensions: 119mm x 119mm x 25mm
  • Input Voltage Max: 12.6V
  • Input Voltage Min: 7V
  • Lead Length: 310mm
  • Panel Cutout Diameter: 116mm
  • Power Consumption: 3.2W
  • Supply Voltage DC Max: 12.6V
  • Supply Voltage DC Min: 7V
  • Type: Low Noise,119mm
