4414F/2 Fan, 120mm, 24Vdc ebm-papst

EBM-PAPSTUGS :4414F/2 Code de commande:9600078

Prix:
Prix ​​promotionnel€88,07

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (922 unité)

Documents et téléchargements

description

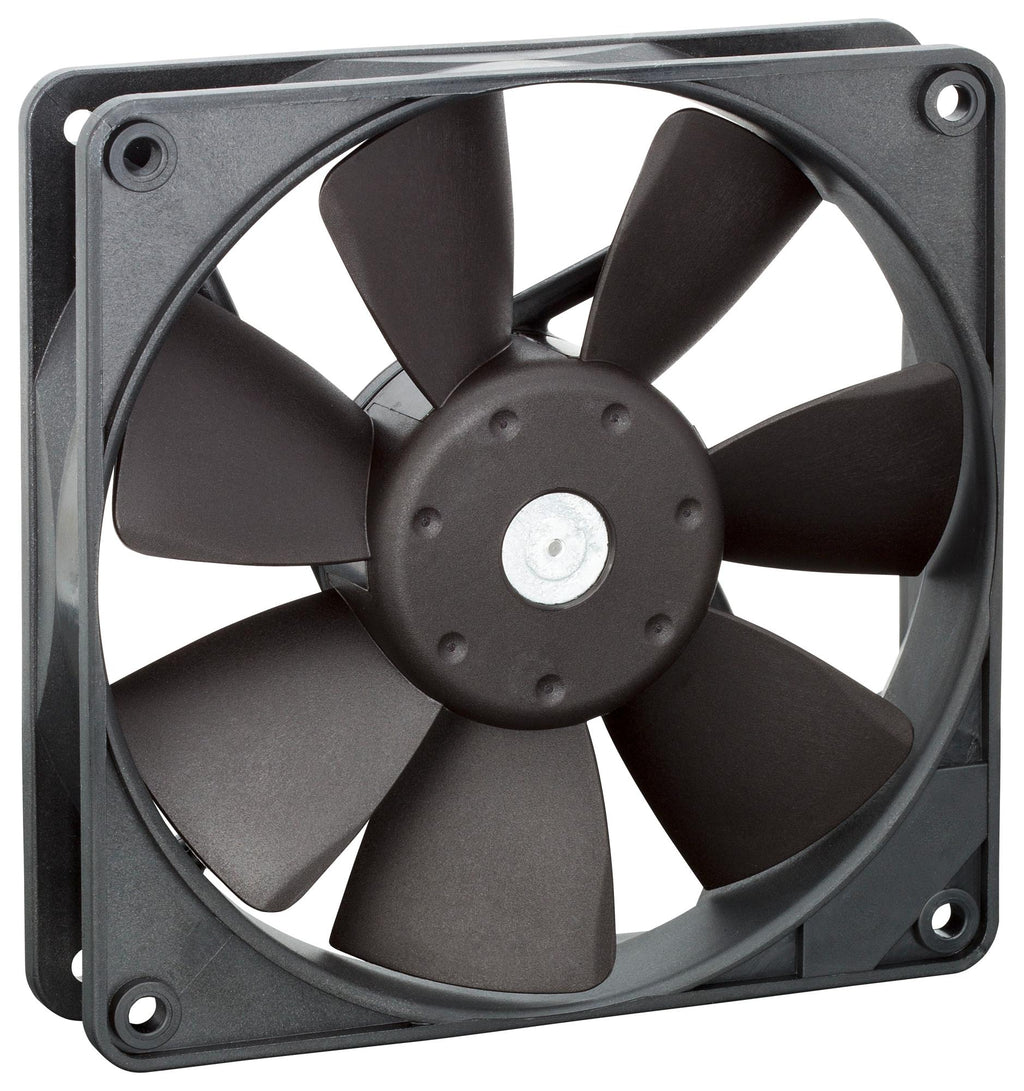

EBM-PAPST - 4414F/2 - DC Axial Fan, 24 V, Square, 119 mm, 25 mm, Ball Bearing, 100.1 CFM

  • Supply Voltage: 24V
  • Current Type: DC
  • Fan Frame Size: 119mm
  • External Depth: 25mm
  • Noise Rating: 43dBA
  • Flow Rate - Imperial: 100.1cu.ft/min
  • Flow Rate - Metric: 170m³/h
  • Bearing Type: Ball
  • Power Connection Type: 3 Lead Wires, Sensor Output
  • Current Rating: -
  • Product Range: 4400F Series
  • Power Rating: -
  • IP Rating: -
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Bodies: CSA, UL, VDE
  • External Height: 119mm
  • External Width: 119mm
  • Fixing Centres: 104.8mm
  • Fixing Hole Diameter: 4.5mm
  • Frame Dimensions: 119mm x 119mm x 25mm
  • Input Voltage Max: 28V
  • Input Voltage Min: 12V
  • Lead Length: 310mm
  • Panel Cutout Diameter: 116mm
  • Power Consumption: 5W
  • Supply Voltage DC Max: 28V
  • Supply Voltage DC Min: 12V
  • Type: Standard,119mm
