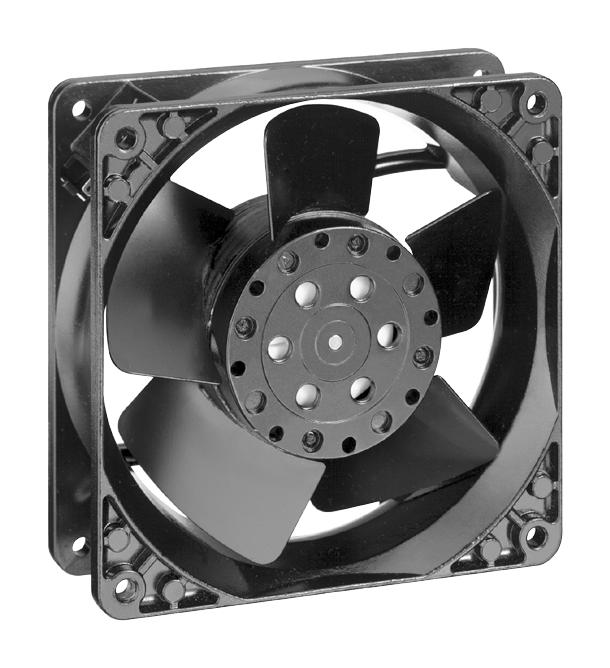

4600N Fan, 119mm, 115VAC ebm-papst

EBM-PAPSTUGS :4600N Code de commande:9599703

Prix:
Prix ​​promotionnel€57,81

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (230 unité)

Documents et téléchargements

description

EBM-PAPST - 4600N - AC Axial Fan, 115V, Square, 119 mm, 38 mm, Sleeve Bearing, 105.9 CFM

  • Supply Voltage: 115V
  • Current Type: AC
  • Fan Frame Size: 119mm
  • External Depth: 38mm
  • Noise Rating: 50dBA
  • Flow Rate - Imperial: 105.9cu.ft/min
  • Flow Rate - Metric: 2.97m³/min
  • Bearing Type: Sleeve
  • Power Connection Type: Terminals
  • Current Rating: -
  • Product Range: 4000N Series
  • Power Rating: 20W
  • IP Rating: IP20
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Bodies: CE, CSA, UL, VDE
  • External Diameter: 119mm
  • External Height: 119mm
  • External Width: 119mm
  • Fixing Centres: 105mm
  • Fixing Hole Diameter: 4mm
  • Frame Dimensions: 119mm x 119mm x 38mm
  • Frequency: 60Hz
  • Operating Temperature Max: 60°C
  • Operating Temperature Min: -10°C
  • Operating life Time: 40000h
  • Panel Cutout Diameter: 115mm
  • Power Consumption: 20W
  • Speed Range Max: 3100rpm
  • Type: Low Noise,119mm
