47272-0001... Displayport Conn, Rcpt, 20POS Molex

MOLEXUGS :47272-0001... Code de commande:2396153

Prix:
Prix ​​promotionnel€8,04

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (5239 unité)

Documents et téléchargements

description

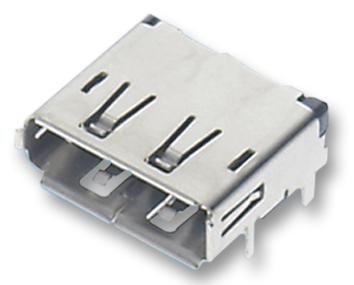

MOLEX - 47272-0001... - DisplayPort Connector, No Cover, 20 Contacts, Receptacle, Surface Mount, Through Hole Right Angle

  • No. of Contacts: 20Contacts
  • Gender: Receptacle
  • Connector Mounting: Surface Mount
  • Contact Termination: Through Hole Right Angle
  • Contact Plating: Gold Plated Contacts
  • Connector Body Material: Metal Body
  • Product Range: 47272 Series
  • SVHC: No SVHC (15-Jan-2019)
  • Contact Resistance: 30mohm
  • Flammability Rating: UL94V-0
  • Insulation Resistance: 10Mohm
  • No. of Mating Cycles: 10000
  • Operating Temperature Max: +85°C
  • Operating Temperature Min: -20°C
  • Voltage Rating VAC: 40V
  • Withstand Voltage: 500V
