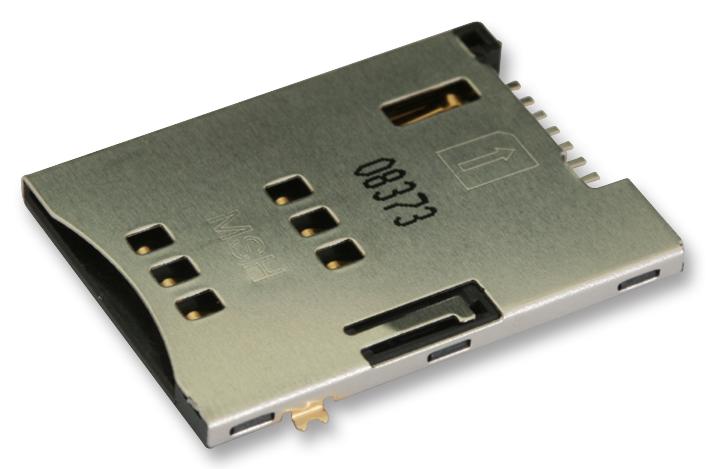

MOLEX - 47553-1001 - Memory Card Connector, Mini SIM, Push-Push, 6 Contacts, Copper Alloy, Gold Plated Contacts, 47553
- Product Range: 47553 Series
- Connector Type: Mini SIM
- No. of Contacts: 6Contacts
- Contact Material: Copper Alloy
- Contact Plating: Gold Plated Contacts
- SVHC: No SVHC (15-Jan-2019)
- Connector Mounting Orientation: Surface Mount
- Contact Termination: Surface Mount Right Angle
- Contact Termination Type: Surface Mount
- Current Rating: 0.5A
- External Length / Height: 1.8mm
- Lead Spacing: 1.27mm
- Material: High Temp. Thermoplastic
- No. of Mating Cycles: 5000
- Operating Temperature Max: 85°C
- Operating Temperature Min: -20°C
- Voltage Rating VAC: 50V
