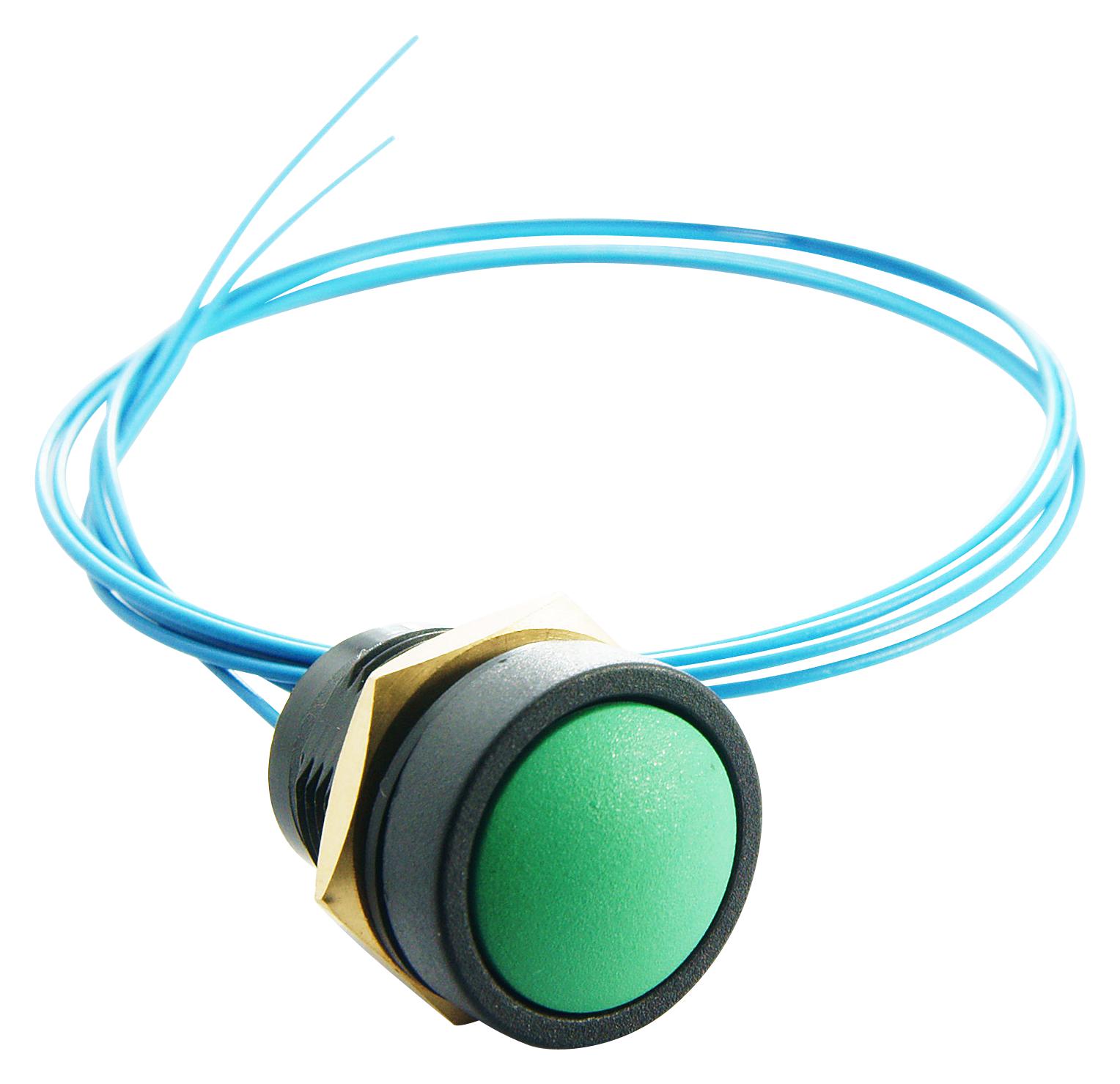

ITW SWITCHES - 49-59113 - Industrial Pushbutton Switch, 49-59W, 16.1 mm, SPST-NO-DB, Momentary, Round Domed, Green
- Switch Operation: Momentary
- Contact Configuration: SPST-NO-DB
- Contact Voltage AC Nom: 125V
- Contact Voltage DC Nom: 50V
- Contact Current Max: 400mA
- Switch Terminals: Wire Leaded
- Product Range: 49-59W Series
- SVHC: No SVHC (17-Dec-2015)
- Actuation Type: Round
- Actuator / Cap Colour: Green
- Bezel Diameter: 19.8mm
- Colour: Green
- Contact Current @ Contact Voltage AC Max: 0.4A
- Contact Current AC Max: 400mA
- Contact Current DC Max: 100mA
- Contact Resistance: 60mohm
- Contact Voltage VAC: 32V
- Contact Voltage VDC: 50V
- Current Rating: 0.1A
- Dielectric Strength VDC: 1000V
- Double Flat Panel Cut-out Diameter: 16mm
- External Depth: 16mm
- External Length / Height: 23.1mm
- Flammability Rating: UL94V-0
- IP / NEMA Rating: IP67
- IP Rating: IP67
- Illumination Colour: Non-illuminated
- Insulation Resistance: 1000Mohm
- No. of Electrical Operations: 500000
- No. of Mechanical Operations: 1000000
- Operating Temperature Max: 105°C
- Operating Temperature Min: -55°C
- Panel Cutout Diameter: 16.1mm
- Switch Mounting: Panel
