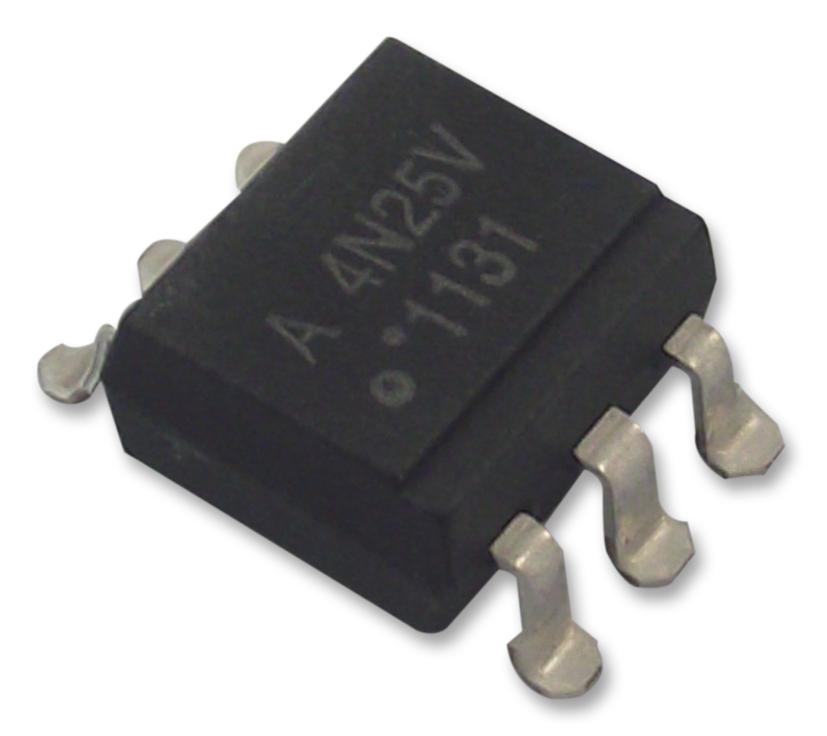

BROADCOM - 4N25-300E - Optocoupler, Transistor Output, 1 Channel, Surface Mount DIP, 6 Pins, 80 mA, 2.5 kV, 20 %
- No. of Channels: 1 Channel
- Optocoupler Case Style: Surface Mount DIP
- No. of Pins: 6Pins
- Forward Current If Max: 80mA
- Isolation Voltage: 2.5kV
- CTR Min: 20%
- Collector Emitter Voltage V(br)ceo: 30V
- Product Range: -
- SVHC: No SVHC (12-Jan-2017)
- Approval Bodies: CSA, DIN, EN, IEC
- Current If CTR: 10mA
- Current Transfer Ratio Min: 20%
- Fall Time tf: 3000ns
- Forward Voltage VF Max: 1.5V
- Input Current: 10mA
- No. of Channels: 1Channels
- Operating Temperature Max: 100°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +100°C
- Optocoupler Output Type: Phototransistor
- Output Voltage: 30V
- Rise Time: 3000ns
- Voltage Vf Typ: 1.2V
