50013PABS-F Gland, Spiral Top, PG13 Jacob

JACOBUGS :50013PABS-F Code de commande:1168790

Prix:
Prix ​​promotionnel€7,24

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (38 unité)

Documents et téléchargements

description

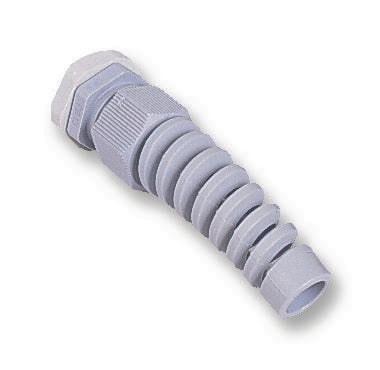

JACOB - 50013PABS-F - Cable Gland, Spiral Top, IP68 5 Bar, PG13.5, 6 mm, 12 mm, Nylon 6 (Polyamide 6), Grey

  • Thread Size - Imperial: -
  • Thread Size - Metric: PG13.5
  • Cable Diameter Min: 6mm
  • Cable Diameter Max: 12mm
  • Cable Gland Material: Nylon 6 (Polyamide 6)
  • Gland Colour: Grey
  • IP / NEMA Rating: IP68
  • Product Range: Perfect PG Spiral Series
  • SVHC: No SVHC (17-Dec-2015)
  • Accessory Type: Gland
  • Approval Bodies: CSA, UL
  • Box Quantity: 5
  • Cable Diameter: 12mm
  • Cable Diameter Max - Imperial: 0.472"
  • Cable Diameter Max - Metric: 12mm
  • Cable Diameter Min - Imperial: 0.236"
  • Cable Diameter Min - Metric: 6mm
  • Colour: Grey
  • Material: Nylon
  • Mounting Hole Dia: 20.4mm
  • Operating Temperature Max: 100°C
  • Operating Temperature Min: -20°C
  • Thread Length: 9mm
  • Thread Size: PG13.5
